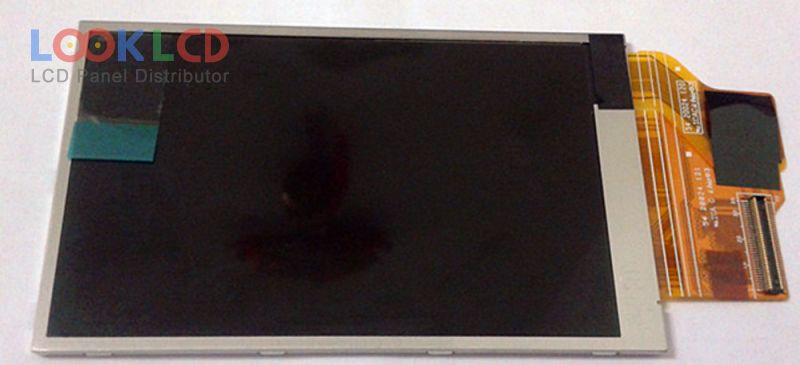

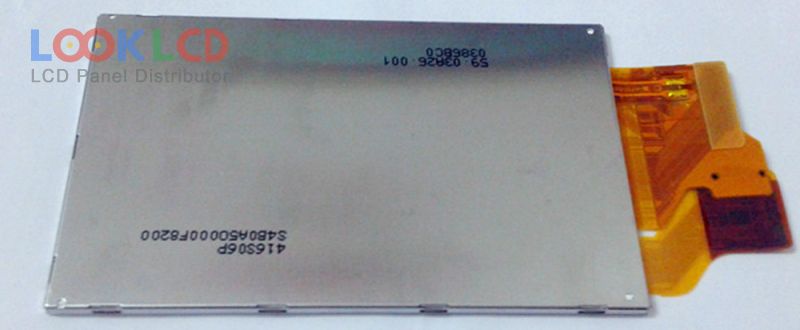

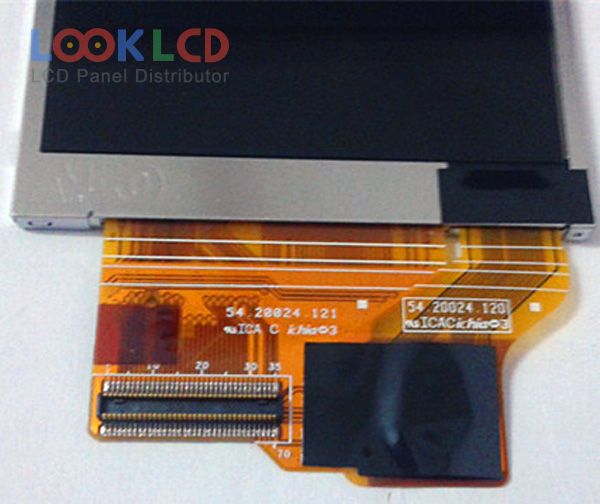

| Artikelnummer | A035VL01 V6 |
| Marke | AUO |
| Größe | 3.5 |
| Anwendung | DSC |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 315 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | AUO |
| Panel-Modell | A035VL01 V6 |
| Plattentyp | LTPS TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 75.6×45.36 mm |
| Umriss | 86.1×51.66 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 315 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 15/30 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 5S1PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 70 pins |
| Eingangsspannung | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| Anwendung | DSC |
