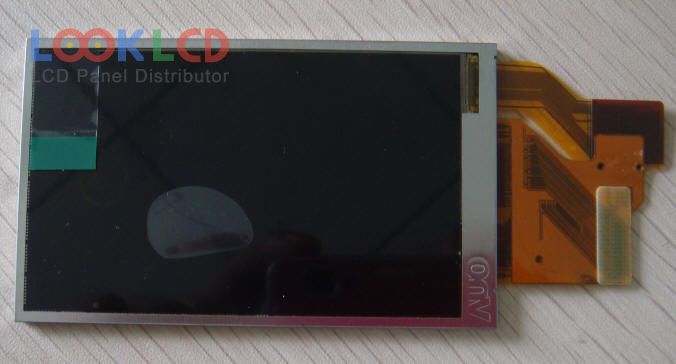

| Artikelnummer | A035VL01 V0 |
| Marke | AUO |
| Größe | 3.5 |
| Anwendung | DVC |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 315 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | AUO |
| Panel-Modell | A035VL01 V0 |
| Plattentyp | LTPS TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 75.6×45.36 mm |
| Umriss | 86.1×51.66 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | 315 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 15/30 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 70 pins |
| Eingangsspannung | 3.3/3.3V (Typ.)(VDD/VDDIO) |
| Anwendung | DVC |
| 35HVF0H | SII | 3.5 | 320×480 |
| 35WVF0H | SII | 3.5 | 480×800 |
| A035VL01 V0 | AUO | 3.5 | 800×480 |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| A035VL01 V6 | AUO | 3.5 | 800×480 |
| H347QN02 V0 | AUO | 3.5 | 320×480 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| T-55343GD035JU-LW-AFN | Kyocera | 3.5 | 320×240 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
| 990000553 | TPO | 3.5 | 320×240 |
| A035CN02 V1 | AUO | 3.5 | 480×234 |
| A035VL01 V0 | AUO | 3.5 | 800×480 |
| A035VL01 V3 | AUO | 3.5 | 800×480 |
| COM48T4Mxxxxx | ORTUSTECH | 4.8 | 1920×1080 |
| LS032V8DY01 | SHARP | 3.2 | 640×480 |
| LTV280QV-F02 | Samsung | 2.8 | 320×240 |
| PD035QX2 | E Ink | 3.5 | 320×240 |
| PW035XU1 | E Ink | 3.5 | 320×234 |
