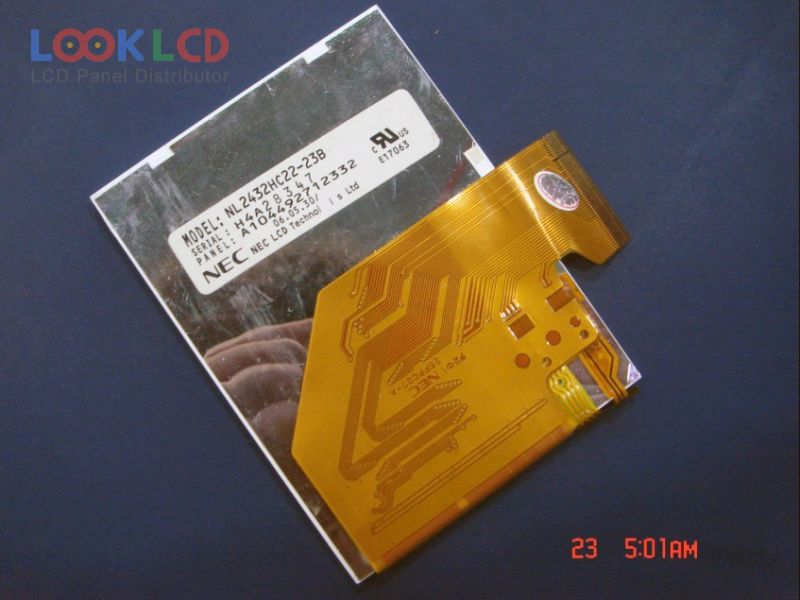

| Artikelnummer | NL2432HC22-23B |
| Marke | NLT |
| Größe | 3.5 |
| Anwendung | PDA |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 90 |
| CR | 80:1 |
| Farben | |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | |
| Panel-Marke | NEC |
| Panel-Modell | NL2432HC22-23B |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transflective |
| aktiver Bereich | 53.64×71.52 mm |
| Umriss | 64×85 mm |
| Oberfläche | |
| Helligkeit | 90 cd/m² (Typ.) |
| Kontrastverhältnis | 80:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| Farben anzeigen | |
| Reaktionszeit | |
| Blickwinkel | |
| Lampentyp | WLED |
| rohs: | |
| Anwendung | PDA |
