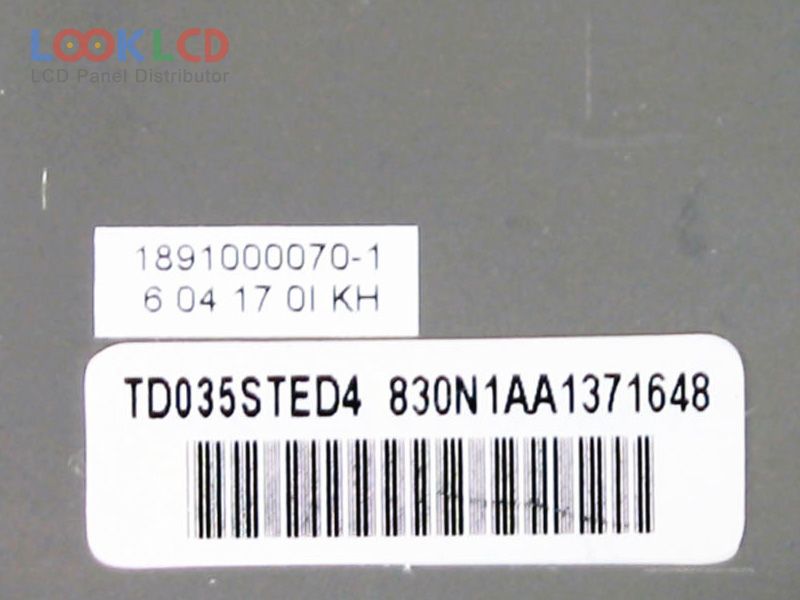

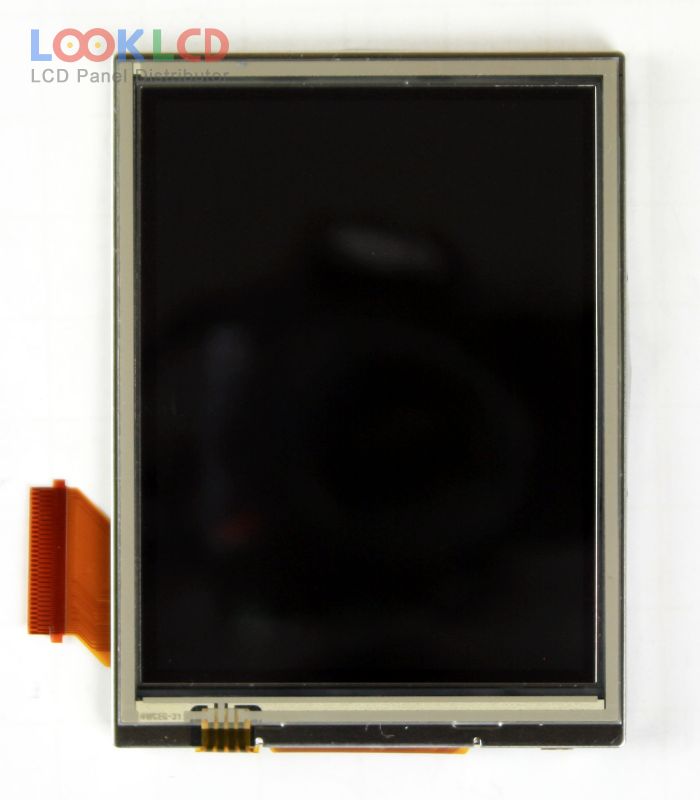

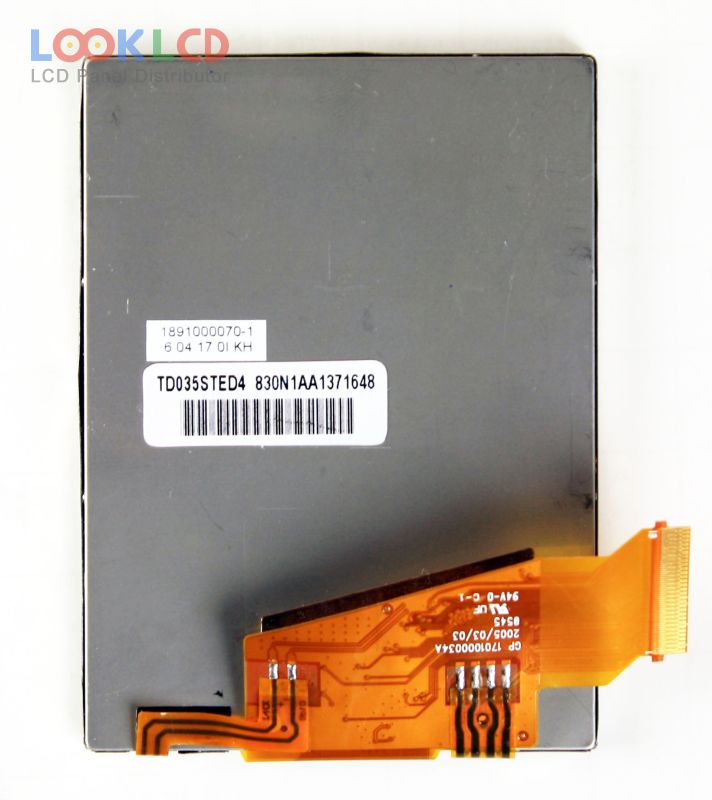

| Artikelnummer | TD035STED4 |
| Marke | TPO |
| Größe | 3.5 |
| Anwendung | PDA |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 115 |
| CR | 100:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | Toppoly |
| Panel-Modell | TD035STED4 |
| Plattentyp | LTPS TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transflective |
| aktiver Bereich | 53.28×71.04 mm |
| Umriss | 64.3×87.1×4.8 mm |
| Oberfläche | |
| Helligkeit | 115 cd/m² (Typ.) |
| Kontrastverhältnis | 100:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| Farben anzeigen | 262K (6-bit), CIE193136% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 4S1PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit) + SPI, 61 pins |
| Eingangsspannung | 2.8/5.0/10/-5.5V (Typ.)(VDD/AVDD/VGH/WEE) |
| Anwendung | PDA |
