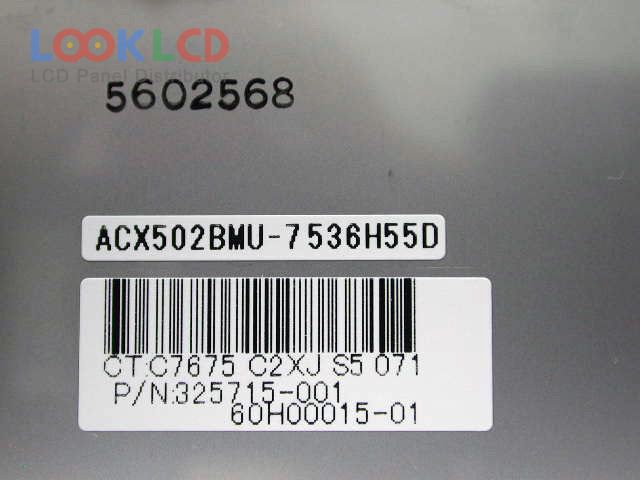

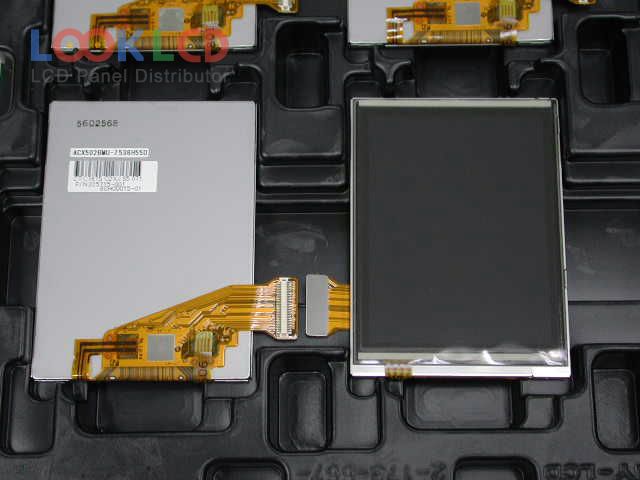

| Artikelnummer | ACX502BMU-7 |
| Marke | SONY |
| Größe | 3.5 |
| Anwendung | PDA |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 70 |
| CR | 80:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SONY |
| Panel-Modell | ACX502BMU-7 |
| Plattentyp | LTPS TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transflective |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 70 cd/m² (Typ.) |
| Kontrastverhältnis | 80:1 (Typ.)(Transmissive)7:1 (Typ.)(Reflective) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | |
| Blickwinkel | |
| Frequenz | 60Hz |
| Lampentyp | 6 pcsWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit) |
| Eingangsspannung | 3.0/5.0V (Typ.)(VDD1/VDD2) |
| rohs: | |
| Anwendung | PDA |
| 35HVE0H | SII | 3.5 | 320×480 |
| A035CN02 V1 | AUO | 3.5 | 480×234 |
| A035QN02 VE | AUO | 3.5 | 320×240 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| C035QVN01.0 | AUO | 3.5 | 240×320 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LTV350QV-F02 | Samsung | 3.5 | 320×240 |
| LTV350QV-F04 | Samsung | 3.5 | 320×240 |
| NL2432HC22-41B | NLT | 3.5 | 240×320 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
| LQ035Q7DH02 | SHARP | 3.5 | 240×320 |
| LTM035A776B | TOSHIBA | 3.5 | 240×320 |
| LTP500GV-F01 | Samsung | 5.0 | 480×640 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| TD035STED4 | TPO | 3.5 | 240×320 |
| TD035STED7 | TPO | 3.5 | 240×320 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
