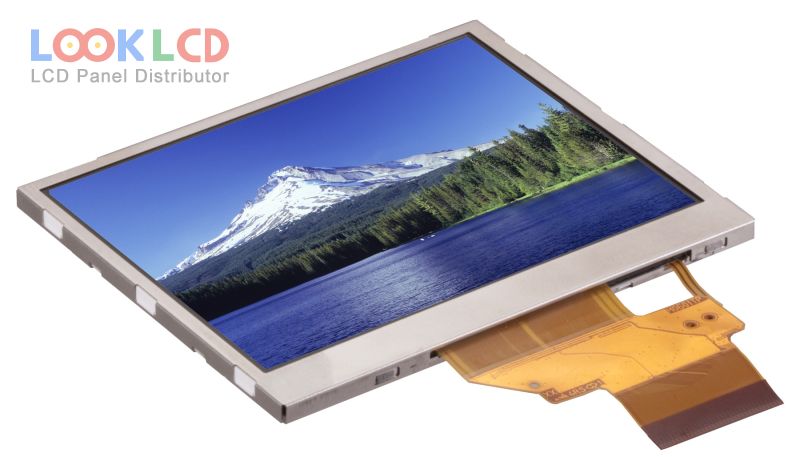

| Artikelnummer | LQ035Q3DG01 |
| Marke | SHARP |
| Größe | 3.5 |
| Anwendung | HHP |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LQ035Q3DG01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 70.56×52.92 mm |
| Umriss | 76.9×63.9 mm |
| Oberfläche | Antiglare |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 8/20 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/60/65 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 7S1PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit) + SPI, 67 pins |
| Eingangsspannung | 3.3/3.3V (Typ.)(VDDIO/VCI) |
| Anwendung | HHP |
