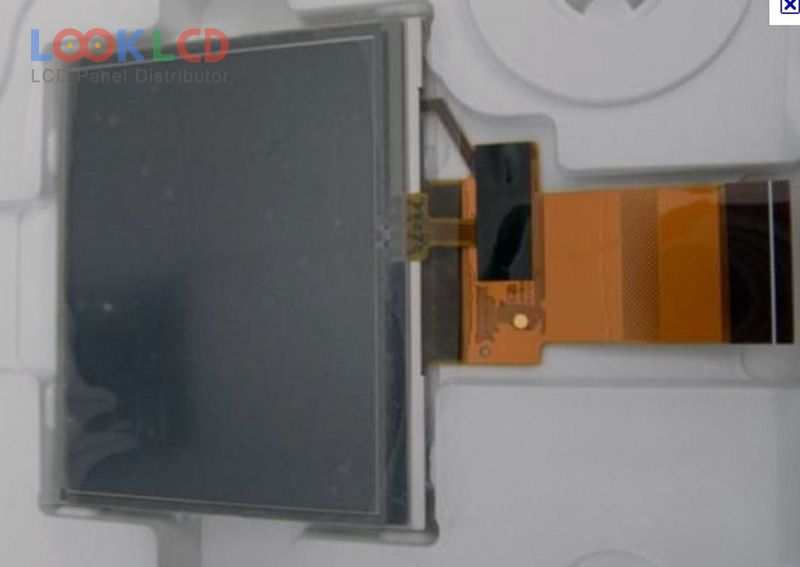

| Artikelnummer | LQ035Q1DG02 |
| Marke | SHARP |
| Größe | 3.5 |
| Anwendung | PND |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 320 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LQ035Q1DG02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 70.56×52.92 mm |
| Umriss | 76.9×63.9×4.45 mm |
| Oberfläche | Antiglare, Hard coating (2H) |
| Helligkeit | 320 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 30/30 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S1PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 71 pins |
| Eingangsspannung | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| rohs: | |
| Anwendung | PND |
