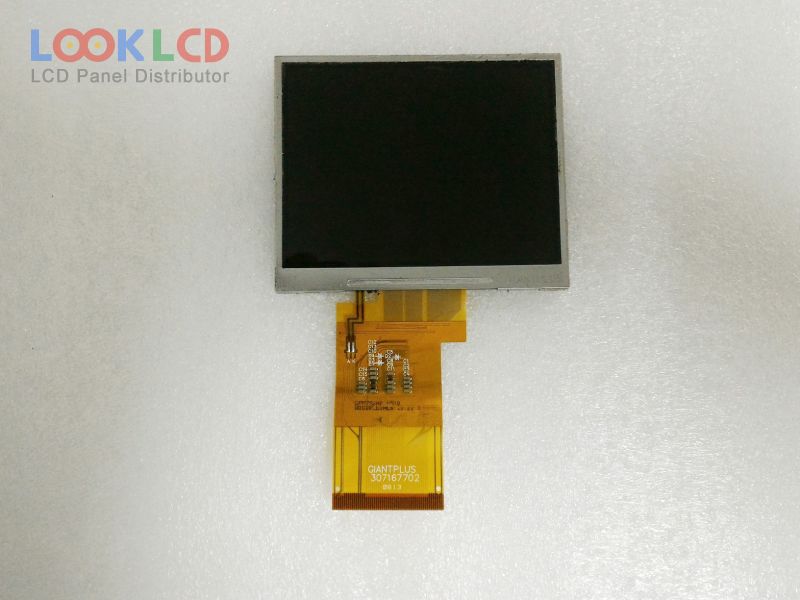

| Artikelnummer | GPM782A0 |
| Marke | Giantplus |
| Größe | 3.5 |
| Anwendung | PND |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 350:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | Giantplus |
| Panel-Modell | GPM782A0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 70.08×52.56 mm |
| Umriss | 76.9×63.9 mm |
| Oberfläche | |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 350:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S1PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 54 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | PND |
