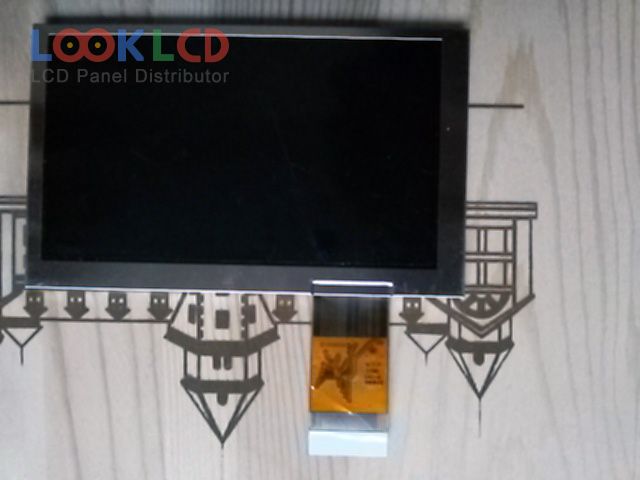

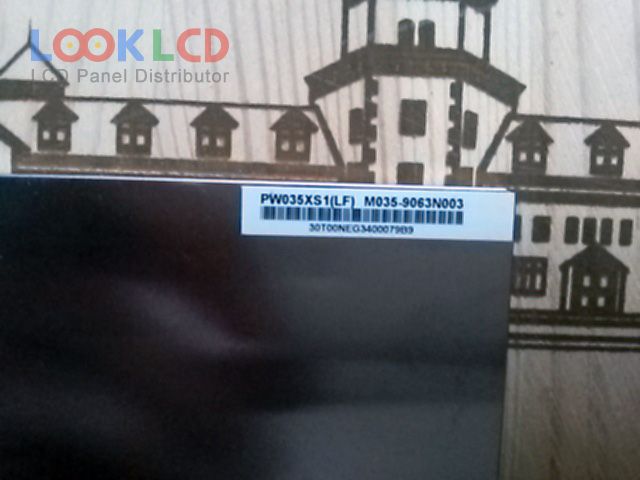

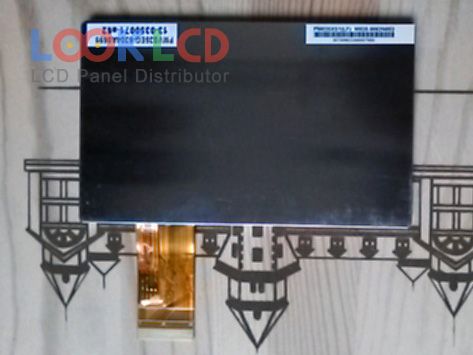

| Artikelnummer | PW035XS1 |
| Marke | E Ink |
| Größe | 3.5 |
| Anwendung | PND |
| Auflösung | 320×234 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 350:1 |
| Farben | Full color |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Analog |
| Panel-Marke | PVI |
| Panel-Modell | PW035XS1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×234 |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 76.32×42.82 mm |
| Umriss | 88×53.5 mm |
| Oberfläche | Antiglare |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 350:1 (Typ.) |
| Farben anzeigen | Full color |
| Reaktionszeit | 15/25 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/50/40 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S2PWLEDWithout Driver |
| Signalschnittstelle | TFT Specific Analog RGB, 30 pins |
| Eingangsspannung | 3.3/3.3/5.0/17.0/-12.0V (Typ.)(VCC/VDD1/VDD2/VGH/VEE) |
| Anwendung | PND |
| LH350WS1-SD02 | LG Display | 3.5 | 640×960 |
| LQ035Q3DG01 | SHARP | 3.5 | 320×240 |
| LTJ035L001A | TPO | 3.5 | 640×360 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| PW035XS1 | E Ink | 3.5 | 320×234 |
| PW035XU1 | E Ink | 3.5 | 320×234 |
| PW036XS3 | E Ink | 3.6 | 320×234 |
| S035V01 | CDTECH | 3.5 | 480×640 |
| TMT035DNAFWU19 | Tianma | 3.5 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
| A043FW02 V0 | AUO | 4.3 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| DLC0500HZG-T-8 | Other | 5.0 | 800×480 |
| GPM782A0 | Giantplus | 3.5 | 320×240 |
| LMS430HF27 | Samsung | 4.3 | 480×272 |
| LQ043T3DX0A | SHARP | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
