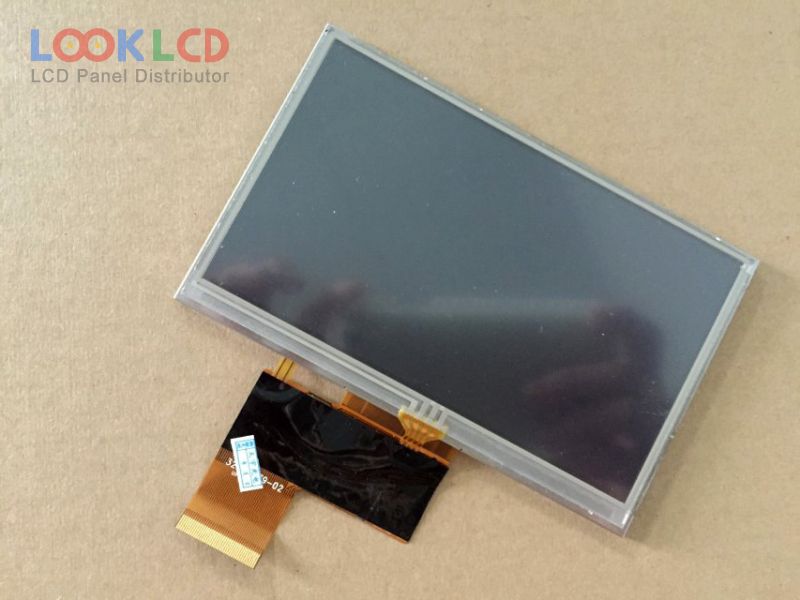

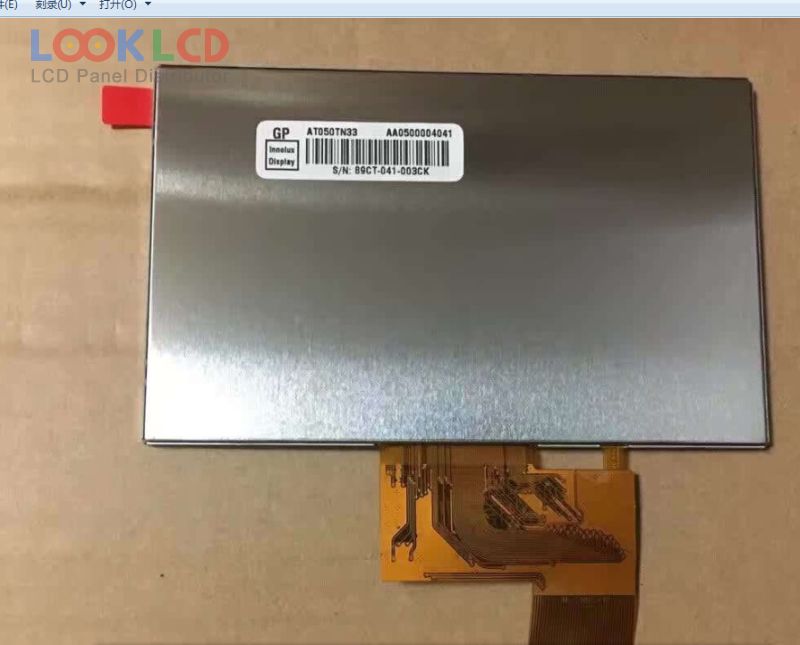

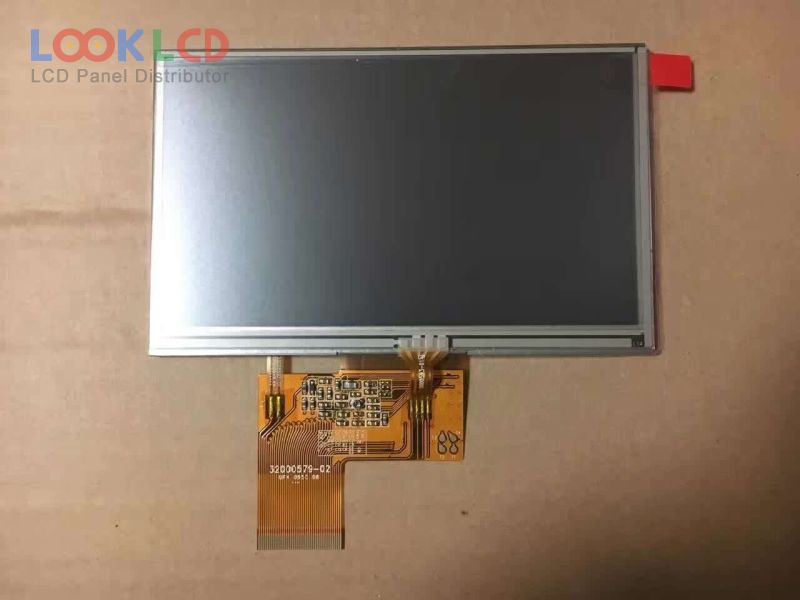

| Artikelnummer | AT050TN33 |
| Marke | Innolux |
| Größe | 5.0 |
| Anwendung | PND |
| Auflösung | 480×272 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | INNOLUX |
| Panel-Modell | AT050TN33 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.0 inch |
| Auflösung | 480(RGB)×272 , WQVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 110.88×62.832 mm |
| Umriss | 120.7×75.8×4.45 mm |
| Oberfläche | Antiglare |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 10/15 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/50/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S2PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit), 40 pins |
| Eingangsspannung | 3.3V (Typ.)(VCC) |
| Anwendung | PND |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| AT050TN33 V.1 | Innolux | 5.0 | 480×272 |
| AT050TN34 | Innolux | 5.0 | 480×272 |
| AT050TN34 V.1 | Innolux | 5.0 | 480×272 |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| AT056TN04 V.6 | Innolux | 5.6 | 320×234 |
| AT056TN52 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.5 | Innolux | 5.6 | 640×480 |
| AT056TN53 V.1 | Innolux | 5.6 | 640×480 |
| A050FW02 V5 | AUO | 5.0 | 480×272 |
| AT043TN24 V.7 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| ET043001DM6 | EDT | 4.3 | 480×272 |
| LMS500HF07 | Samsung | 5.0 | 480×272 |
| LMS500HF13-003 | Samsung | 5.0 | 480×272 |
| LQ043T3DX0G | SHARP | 4.3 | 480×272 |
| LR430RC9601 | Innolux | 4.3 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
| PT035TN01 V.3 | Innolux | 3.5 | 320×240 |
