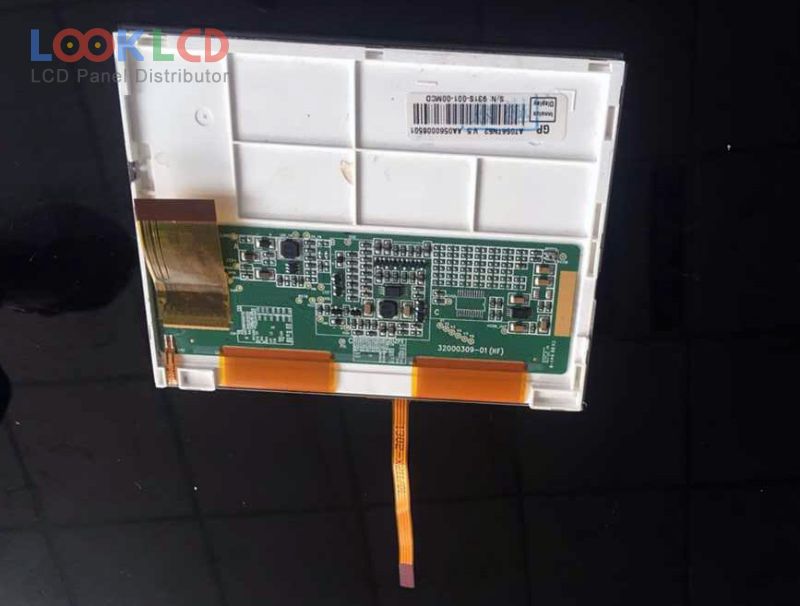

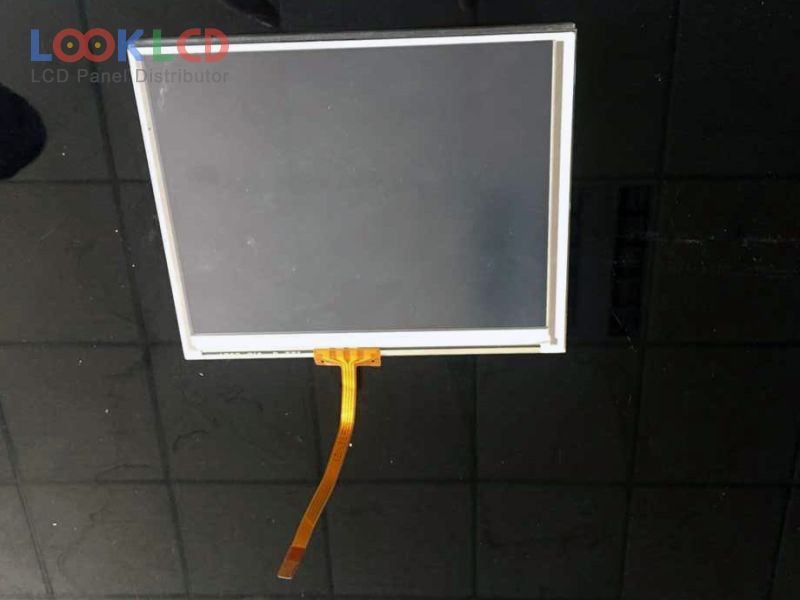

| Artikelnummer | AT056TN52 V.5 |
| Marke | Innolux |
| Größe | 5.6 |
| Anwendung | |
| Auflösung | 640×480 |
| Komposition | LCM |
| Helligkeit | 280 |
| CR | 500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | INNOLUX |
| Panel-Modell | AT056TN52 V.5 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.6 inch |
| Auflösung | 640(RGB)×480 , VGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 112.896×84.672 mm |
| Umriss | 126.5×100×8.6 mm |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 280 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 10/15 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLEDEmbedded (LED Driver) |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 40 pins |
| Eingangsspannung | 3.3V (Typ.) |
| AT056TN03 | Innolux | 5.6 | 320×234 |
| AT056TN04 V.6 | Innolux | 5.6 | 320×234 |
| AT056TN52 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.2 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.3 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.4 | Innolux | 5.6 | 640×480 |
| AT056TN52 V.5 | Innolux | 5.6 | 640×480 |
| AT056TN53 V.1 | Innolux | 5.6 | 640×480 |
| C-51505NFJ-SLW-APN | Kyocera | 3.0 | 20×2 |
| DMC-20261NYJ-LY-CKE-CNN | Kyocera | 3.0 | 20×2 |
| HSD101PFW1-B00 | HannStar | 10.1 | 1024×576 |
| HT15X31-100 | HYDIS | 15.0 | 1024×768 |
| LMS430HF01 | Samsung | 4.3 | |
| LQ0DAS0749 | SHARP | 7.0 | 600×800 |
| LTM10C345 | TOSHIBA | 10.4 | 1024×768 |
| OEL9M0083-W-E | Other | 0.96 | 128×64 |
| OEL9M5001-G-E | Other | 2.7 | 128×64 |
| TD043MTEA1 | TPO | 4.3 | 800×480 |
