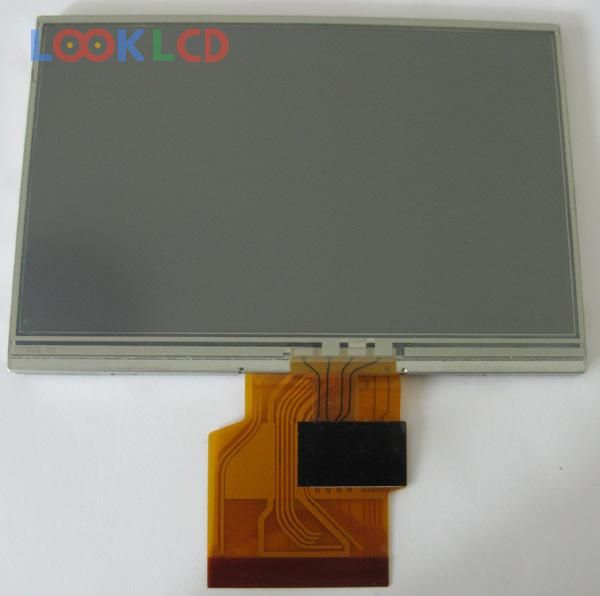

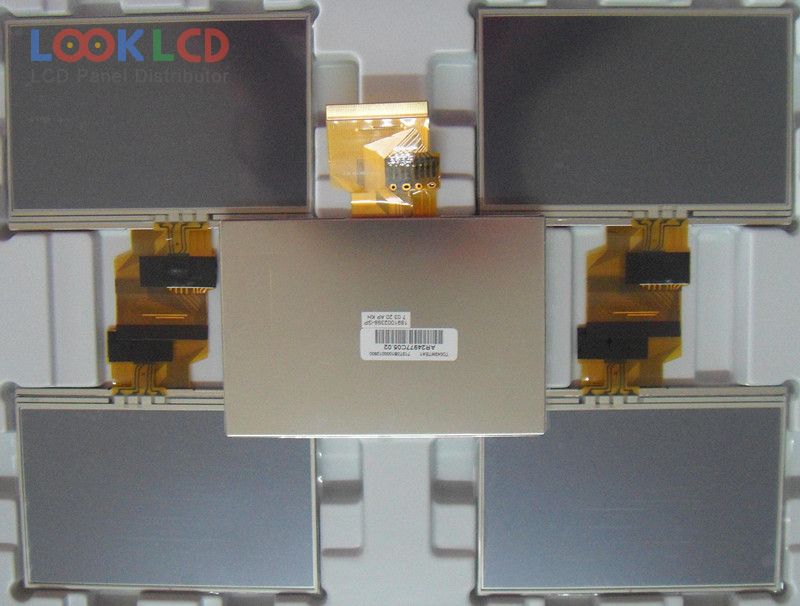

| Artikelnummer | TD043MTEA1 |
| Marke | TPO |
| Größe | 4.3 |
| Anwendung | |
| Auflösung | 800×480 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 400:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | TPO |
| Panel-Modell | TD043MTEA1 |
| Plattentyp | LTPS TFT-LCD , LCM |
| Panelgröße | 4.3 inch |
| Auflösung | 800(RGB)×480 , WVGA |
| Anzeigemodus | Normally Black, Transmissive |
| aktiver Bereich | 93.6×56.16 mm |
| Umriss | 100.6×68.45 mm |
| Oberfläche | |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 8S1PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit), 60 pins |
| Eingangsspannung | 3.3/5.0/-5V (Typ.)(VCC/VDDP/VDDN) |
