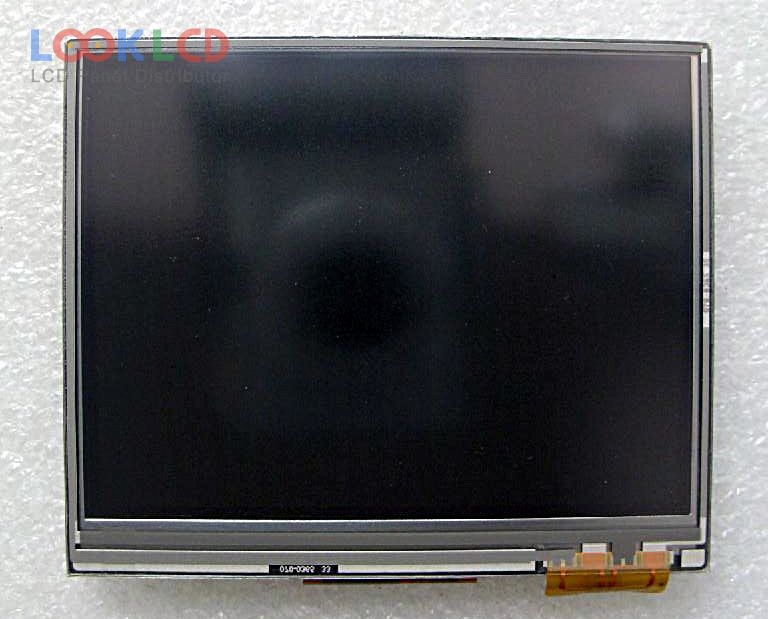

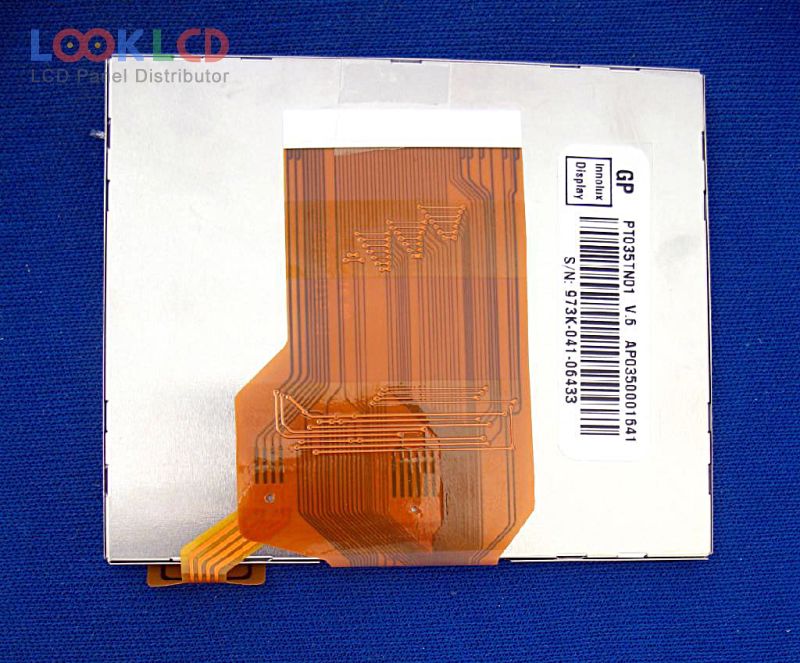

| Artikelnummer | PT035TN01 V.6 |
| Marke | Innolux |
| Größe | 3.5 |
| Anwendung | PND |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 300:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Parallel/Serial |
| Panel-Marke | INNOLUX |
| Panel-Modell | PT035TN01 V.6 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, TMR |
| aktiver Bereich | 70.08×52.56 mm |
| Umriss | 78.2×65×4.8 mm |
| Oberfläche | Antiglare |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 300 : 1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 15/20 (Typ.)(Tr/Td) |
| Blickwinkel | 65/65/45/65 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S1PWLEDWithout Driver |
| Signalschnittstelle | Digital RGB (8/24-bit) + SPI, CCIR601/656, 60 pins |
| Eingangsspannung | 3.3/5.0/15.0/-10.0V (Typ.)(VCC/AVDD/VGH/VGL) |
| Anwendung | PND |
