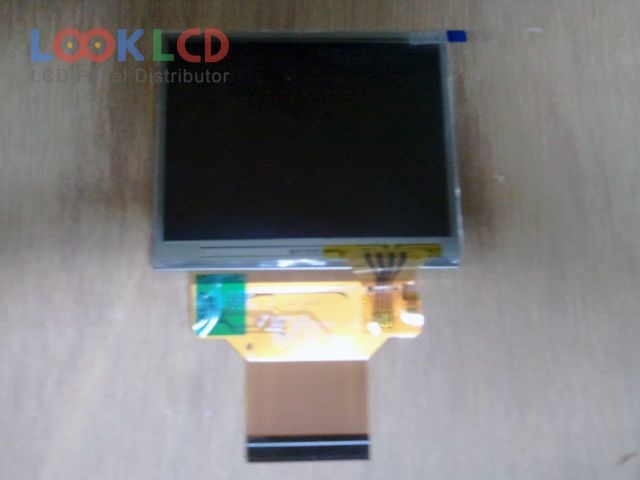

| Artikelnummer | LB035Q02-TD01 |
| Marke | LG Display |
| Größe | 3.5 |
| Anwendung | PND |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 400:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Parallel/Serial |
| Panel-Marke | LG.Philips LCD |
| Panel-Modell | LB035Q02-TD01 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 70.08×52.56 mm |
| Umriss | 76.9×63.9×4.45 mm |
| Oberfläche | Clear, Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 16.7M |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 65/65/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 6S1PWLED |
| Signalschnittstelle | Digital RGB (8/18/24-bit) + SPI, 60 pins |
| Eingangsspannung | 3.3/13/-9V (Typ.)(VCI/VGH/VGL) |
| rohs: | |
| Anwendung | PND |
| DLC0350SZG | Other | 3.5 | 480×640 |
| H347QN02 V0 | AUO | 3.5 | 320×480 |
| LB035Q01-TJ01 | LG Display | 3.5 | 320×240 |
| LB035Q02-TD01 | LG Display | 3.5 | 320×240 |
| LB035Q03-TD02 | LG Display | 3.5 | 320×240 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LH350WS1-SH02 | LG Display | 3.5 | 640×960 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| TM035WBHG01 | Tianma | 3.5 | 480×640 |
| TMT035DNAFWU19 | Tianma | 3.5 | 320×240 |
| 43WQW1H | SII | 4.3 | 480×272 |
| 43WQW3T | SII | 4.3 | 480×272 |
| 43WQW4T | SII | 4.3 | 480×272 |
| 990000475 | TPO | 4.3 | 800×480 |
| AT050TN33 | Innolux | 5.0 | 480×272 |
| HST043BOH57-40AV0 | Other | 4.3 | 480×272 |
| LQ043T3DX0F | SHARP | 4.3 | 480×272 |
| LR043AC212 | Innolux | 4.3 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
