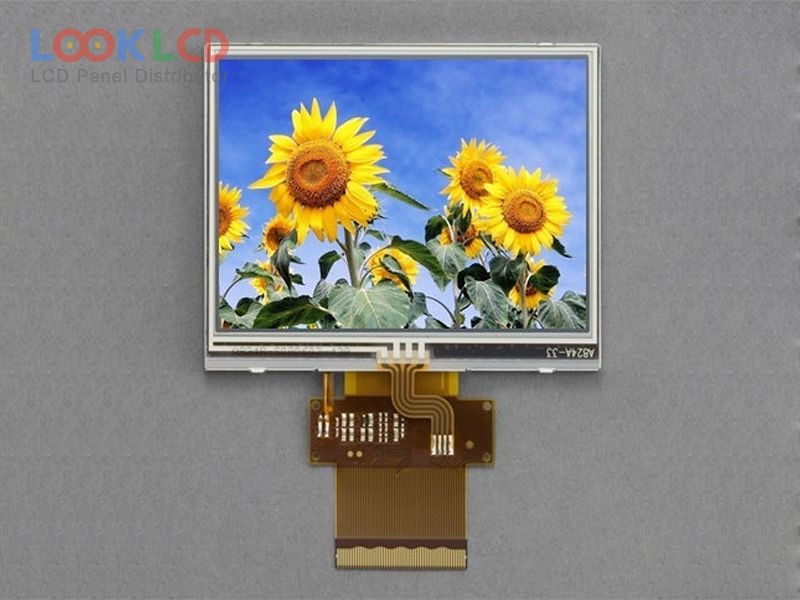

| Artikelnummer | 35QVW1T |
| Marke | SII |
| Größe | 3.5 |
| Anwendung | PND |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SII |
| Panel-Modell | 35QVW1T |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 70.08×52.56 mm |
| Umriss | 76.9×63.9 mm |
| Oberfläche | Antiglare |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 15/35 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 6S1PWLED |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| Anwendung | PND |
