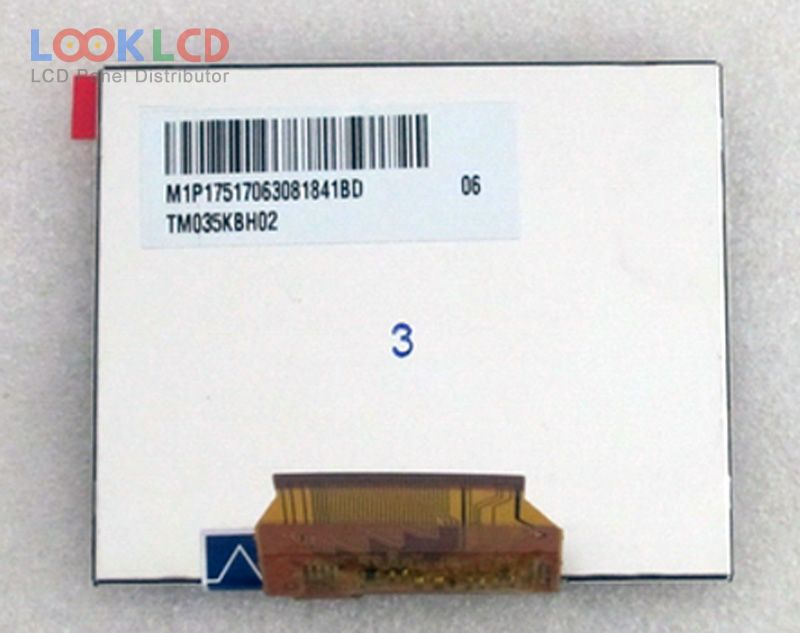

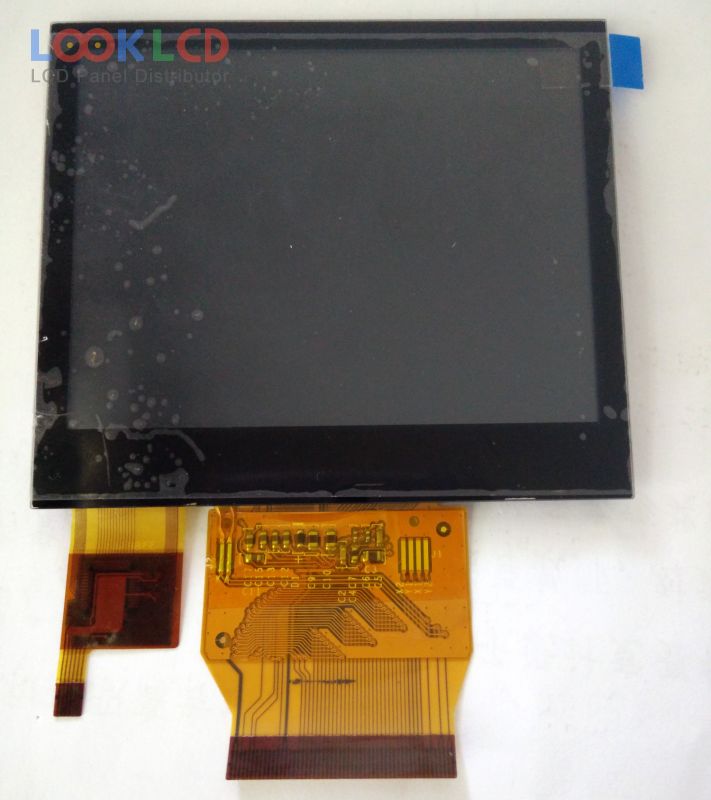

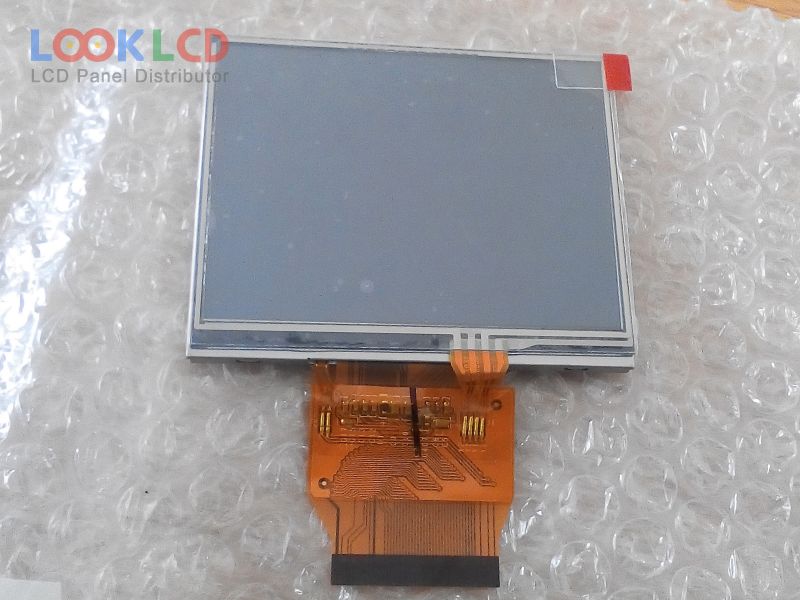

| Artikelnummer | TM035KBH02 |
| Marke | Tianma |
| Größe | 3.5 |
| Anwendung | DSC |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Parallel/Serial |
| Panel-Marke | TIANMA |
| Panel-Modell | TM035KBH02 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 70.08×52.56 mm |
| Umriss | 76.9×63.9×4.2 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 16.7M (6-bit + Dithering), CIE193150% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S1PWLEDWithout Driver |
| Signalschnittstelle | Digital RGB (8/24-bit) + SPI, CCIR601/656, 54 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | DSC |
