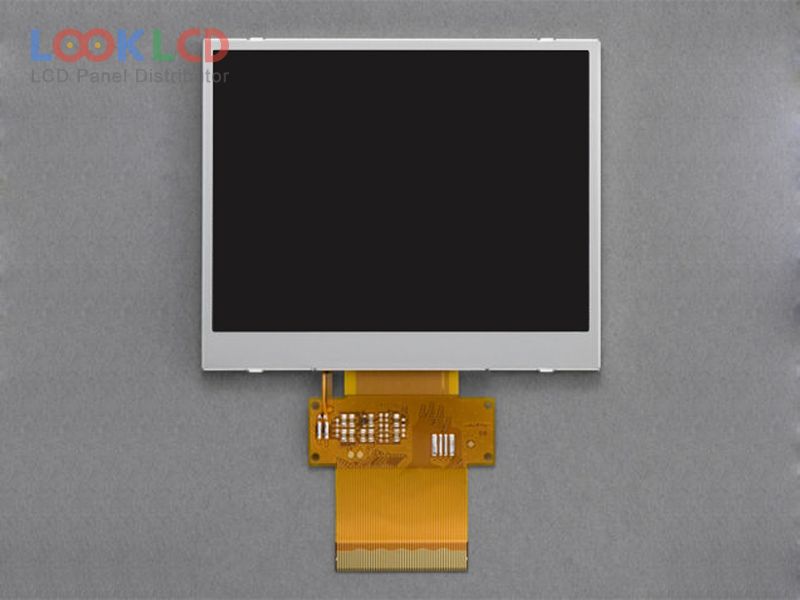

| Artikelnummer | 35QVW1H |
| Marke | SII |
| Größe | 3.5 |
| Anwendung | PND |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SII |
| Panel-Modell | 35QVW1H |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 70.08×52.56 mm |
| Umriss | 76.9×63.9×3.4 mm |
| Oberfläche | Clear, Hard coating |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 15/35 (Typ.)(Tr/Td) |
| Blickwinkel | 70/70/50/65 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 6S1PWLED |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| Anwendung | PND |
| 35QVW1H | SII | 3.5 | 320×240 |
| 35QVW1T | SII | 3.5 | 320×240 |
| LTV350QV-F04 | Samsung | 3.5 | 320×240 |
| NL2432DR22-02B | NLT | 3.5 | 240×320 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| TD035SHED1 | TPO | 3.5 | 480×640 |
| TM035HDHT1 | Tianma | 3.5 | 240×320 |
| TM035KBH02 | Tianma | 3.5 | 320×240 |
| TM035KDH03 | Tianma | 3.5 | 320×240 |
| A040FL01 V2 | AUO | 4.0 | 480×272 |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| AT050TN43 V.1 | Innolux | 5.0 | 800×480 |
| DLC0500EZG-T-6 | Other | 5.0 | 800×480 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LQ043T1DH41 | SHARP | 4.3 | 480×272 |
| LQ043T3DG02 | SHARP | 4.3 | 480×272 |
| LR043AC212 | Innolux | 4.3 | 480×272 |
| LTE400WQ-E01 | Samsung | 4.0 | 480×272 |
| LTE430WQ-F07 | Samsung | 4.3 | 480×272 |
