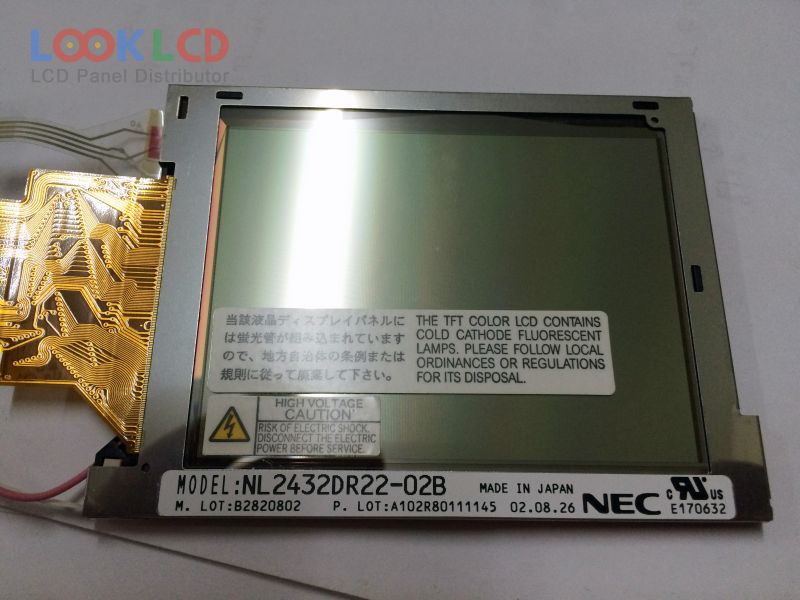

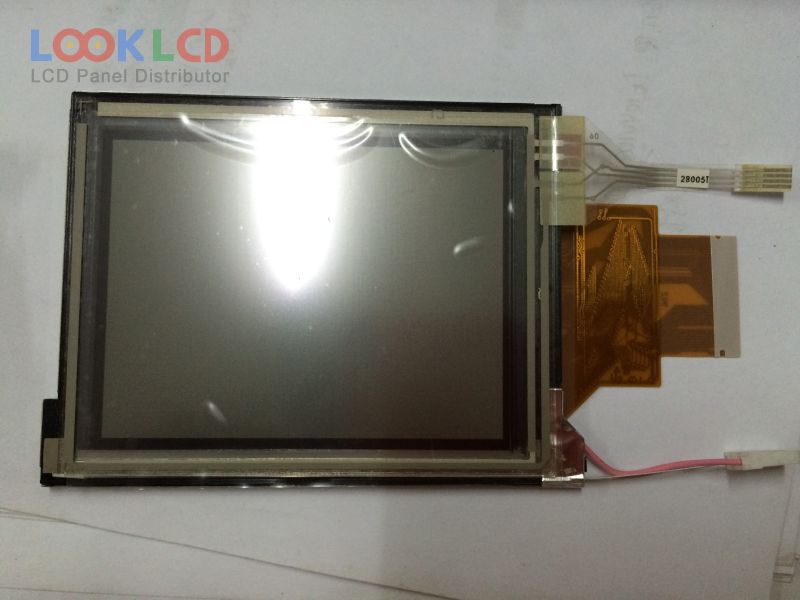

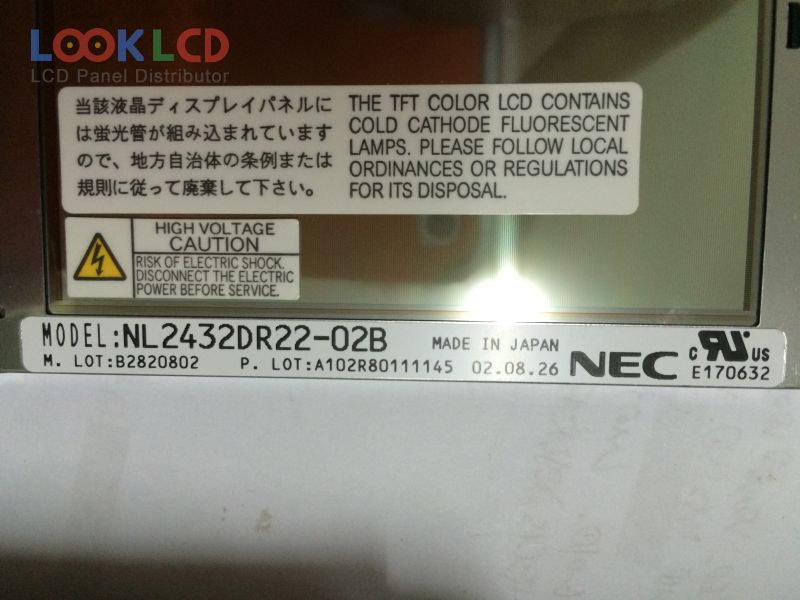

| Artikelnummer | NL2432DR22-02B |
| Marke | NLT |
| Größe | 3.5 |
| Anwendung | PDA |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 85 |
| CR | |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL2432DR22-02B |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Reflective |
| aktiver Bereich | 53.64×71.52 mm |
| Umriss | 70×96×4.85 mm |
| Oberfläche | |
| Helligkeit | 85 cd/m² (Typ.) |
| Kontrastverhältnis | 8/10(Reflective) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 15/17 (Typ.)(Tr/Td) |
| Blickwinkel | |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 45 pins |
| Eingangsspannung | 3.0/5.0/15.0/-15.0V (Typ.)(VCC/VDD/VGON/VGOFF) |
| Anwendung | PDA |
