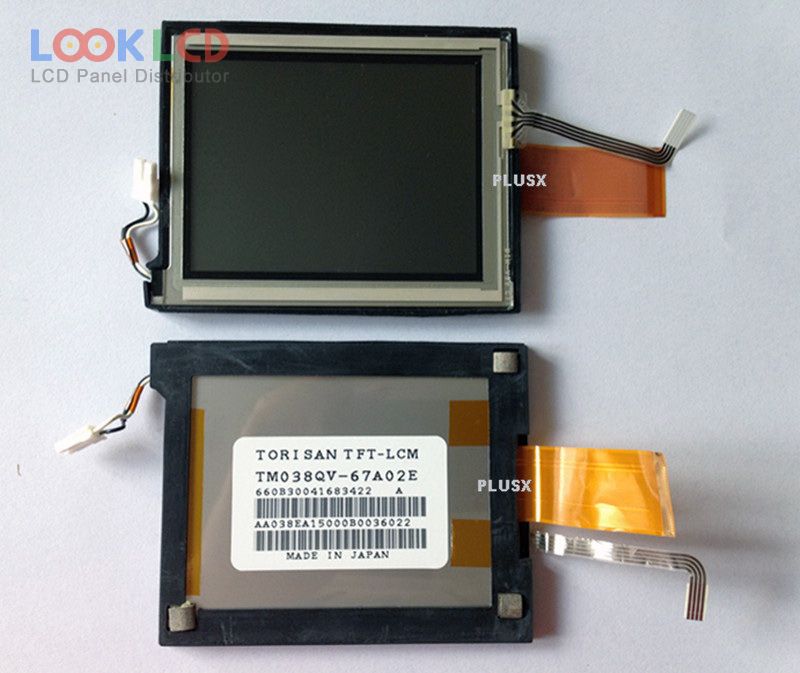

| Artikelnummer | TM038QV-67A02A |
| Marke | SANYO |
| Größe | 3.8 |
| Anwendung | PDA |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 28 |
| CR | |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | TORISAN |
| Panel-Modell | TM038QV-67A02A |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.8 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Reflective |
| aktiver Bereich | 76.8×57.6 mm |
| Umriss | 96.8×73 mm |
| Oberfläche | Glare (Haze 0%), Hard coating (3H) |
| Helligkeit | 28 cd/m² (Typ.) |
| Kontrastverhältnis | 7/17(Reflective) |
| Farben anzeigen | 262K (6-bit) |
| Reaktionszeit | 10/10 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/50/50 (Typ.)(CR≥2)(L/R/U/D) |
| Lampentyp | 1 pcsCCFLWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit), 60 pins |
| Eingangsspannung | 3.3/5/15/-10V (Typ.)(VDD/VCC/VGH/VGL) |
| Anwendung | PDA |
| CMD510TT00-C1 | ORTUSTECH | 3.8 | 320×240 |
| H380VW01 V2 | AUO | 3.8 | 480×800 |
| LQ038B7DB01 | SHARP | 3.8 | 320×480 |
| LQ038Q7DB03A | SHARP | 3.8 | 240×320 |
| LQ038Q7DB03R | SHARP | 3.8 | 240×320 |
| LS038Y3LX01 | SHARP | 3.8 | 480×800 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| TM038QV-67A02E | SANYO | 3.8 | 320×240 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
| LQ035Q7DH05 | SHARP | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| NL2432DR22-11B | NLT | 3.5 | 240×320 |
| NL2432HC22-23B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| TD035STEB2 | TPO | 3.5 | 240×320 |
| TD035STED4 | TPO | 3.5 | 240×320 |
| TM038QV-67A02A | SANYO | 3.8 | 320×240 |
| TM038QV-67A03 | SANYO | 3.8 | 320×240 |
