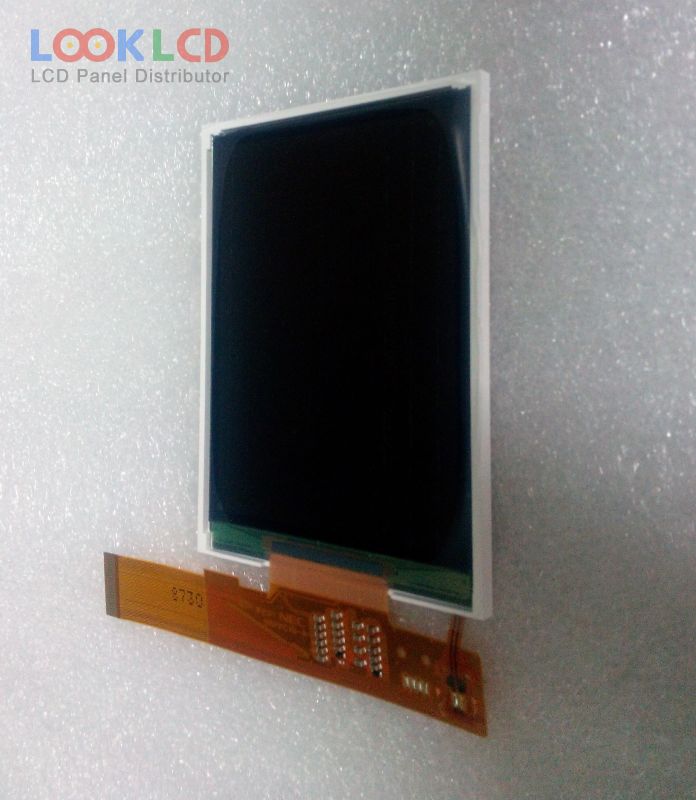

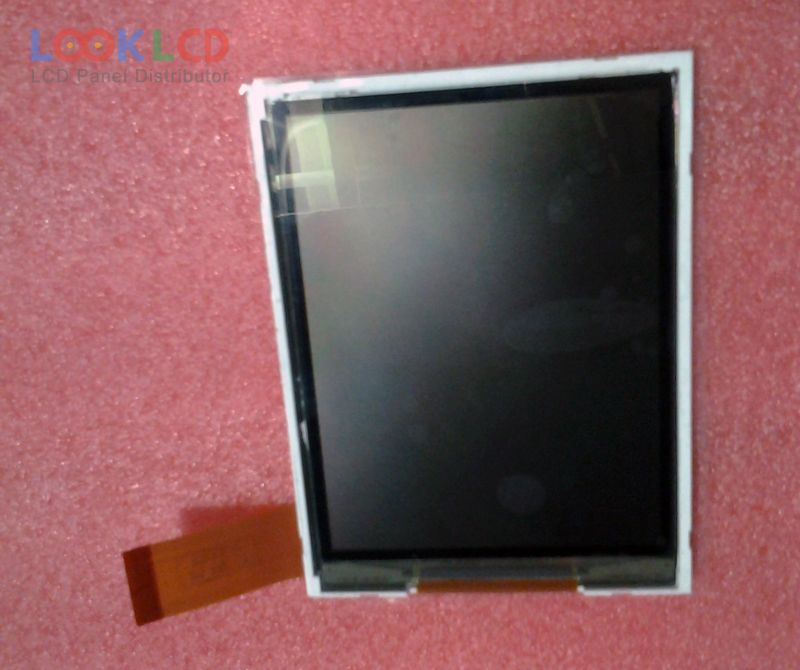

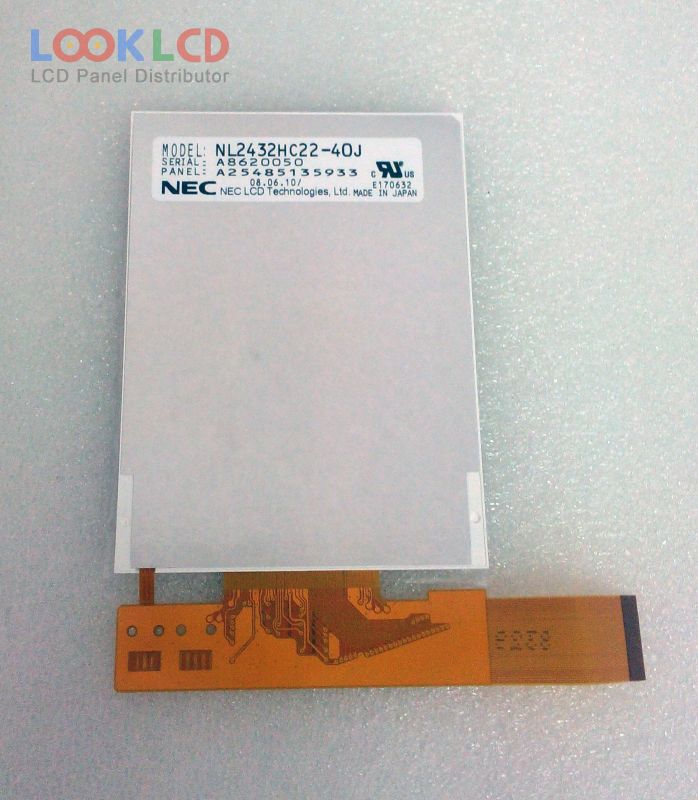

| Artikelnummer | NL2432HC22-40J |
| Marke | NLT |
| Größe | 3.5 |
| Anwendung | PDA |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 220 |
| CR | 150:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL2432HC22-40J |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transflective |
| aktiver Bereich | 53.64×71.52 mm |
| Umriss | 63.5×85×3.2 mm |
| Oberfläche | Clear, Hard coating (3H) |
| Helligkeit | 220 cd/m² (Typ.) |
| Kontrastverhältnis | 150:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| Farben anzeigen | 262K (6-bit), CIE193140% |
| Reaktionszeit | 7/23 (Typ.)(Tr/Td) |
| Blickwinkel | 35/35/35/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 5S1PWLEDWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit) + SPI, 45 pins |
| Eingangsspannung | 3.0V (Typ.) |
| Anwendung | PDA |
