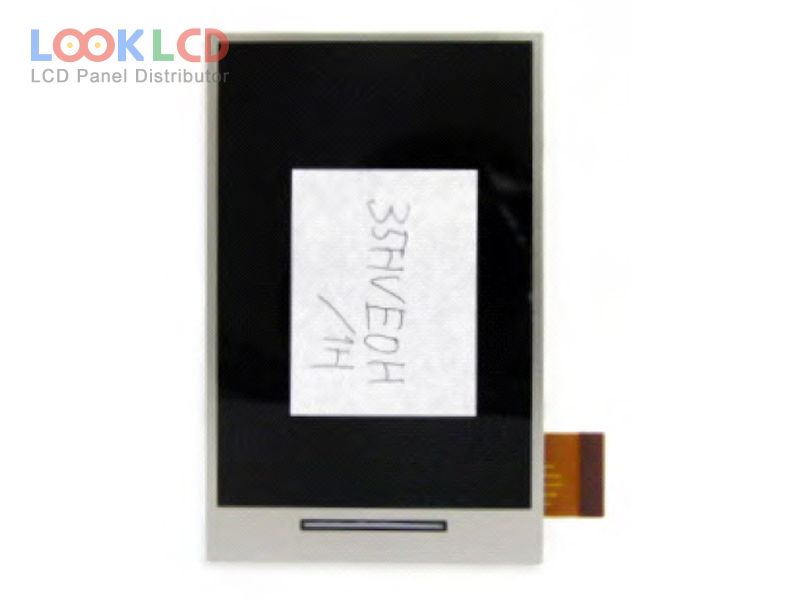

| Artikelnummer | 35HVE1H |
| Marke | SII |
| Größe | 3.5 |
| Anwendung | HHP |
| Auflösung | 320×480 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 600:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | CPU |
| Panel-Marke | SII |
| Panel-Modell | 35HVE1H |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×480 , HVGA |
| Anzeigemodus | E-mode, Normally White, Transmissive |
| aktiver Bereich | 48.96×73.44 mm |
| Umriss | 54.96×85.94×2.3 mm |
| Oberfläche | Clear, Hard coating |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 1S5PWLED |
| Signalschnittstelle | CPU, 45 pins |
| Anwendung | HHP |
