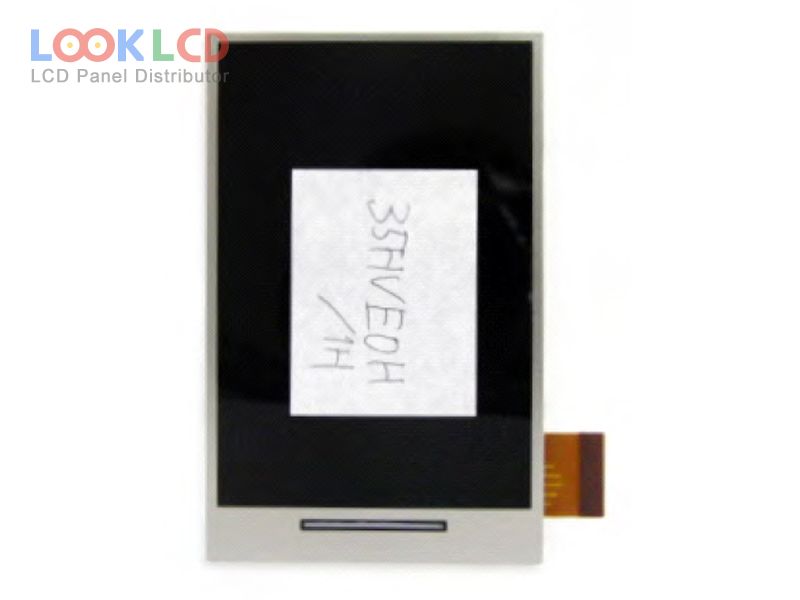

| Artikelnummer | 35HVE0H |
| Marke | SII |
| Größe | 3.5 |
| Anwendung | PND |
| Auflösung | 320×480 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 600:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SII |
| Panel-Modell | 35HVE0H |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×480 , HVGA |
| Anzeigemodus | E-mode, Normally White, Transmissive |
| aktiver Bereich | 48.96×73.44 mm |
| Umriss | 54.96×85.94×2.3 mm |
| Oberfläche | Clear, Hard coating |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 600:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193160% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1S5PWLED |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit) + SPI, 45 pins |
| Anwendung | PND |
| 35HVE0H | SII | 3.5 | 320×480 |
| 35HVE1H | SII | 3.5 | 320×480 |
| 35HVF0H | SII | 3.5 | 320×480 |
| A035CN02 V1 | AUO | 3.5 | 480×234 |
| DLC0350FVG-5 | Other | 3.5 | 320×240 |
| DLC0350SZG | Other | 3.5 | 480×640 |
| LH350WS1-SD02 | LG Display | 3.5 | 640×960 |
| LQ035Q1DH02 | SHARP | 3.5 | 320×240 |
| LQ035Q2DD56 | SHARP | 3.5 | 320×240 |
| PJ035MA-02A | Innolux | 3.5 | 320×480 |
| 43WVF1G | SII | 4.3 | 800×480 |
| AT043TN24 V.1 | Innolux | 4.3 | 480×272 |
| AT043TN25 V.1 | Innolux | 4.3 | 480×272 |
| ED043CA-01D | Innolux | 4.3 | 480×272 |
| LMS480KC02 | Samsung | 4.8 | 800×480 |
| LMS500HF05 | Samsung | 5.0 | 480×272 |
| LR430RC9001 | Innolux | 4.3 | 480×272 |
| LTP400WQ-F01 | Samsung | 4.0 | 480×272 |
| PW035XS1 | E Ink | 3.5 | 320×234 |
| TM050NDH01 | Tianma | 5.0 | 480×272 |
