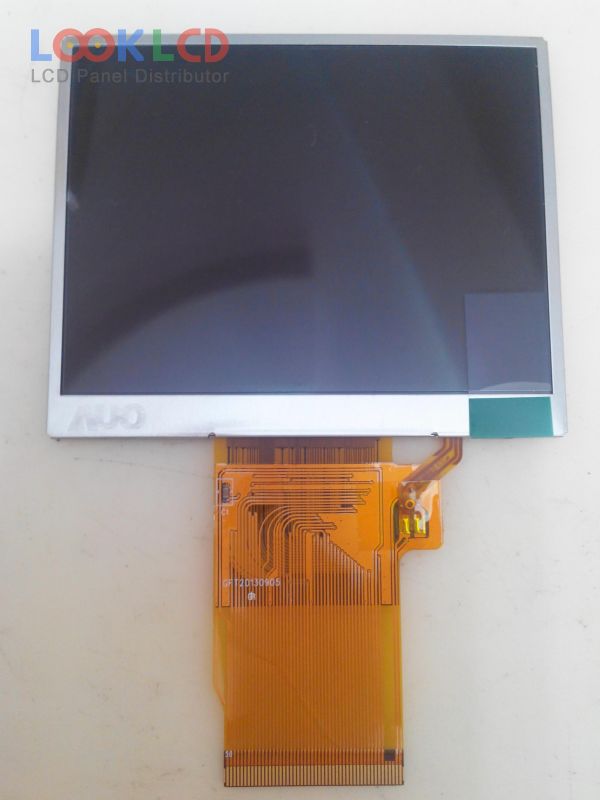

| Artikelnummer | A035QN02 VE |
| Marke | AUO |
| Größe | 3.5 |
| Anwendung | DSC |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 300:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Serial RGB |
| Panel-Marke | AUO |
| Panel-Modell | A035QN02 VE |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 70.08×52.56 mm |
| Umriss | 76.9×63.9×3.12 mm |
| Oberfläche | Antiglare, Hard coating (3H) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193160% |
| Reaktionszeit | 10/15 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/50/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S1PWLEDWithout Driver |
| Signalschnittstelle | Serial RGB (8-bit) + SPI, 50 pins |
| Eingangsspannung | 3.3/3.3V (Typ.)(VCI/VDDIO) |
| Anwendung | DSC |
