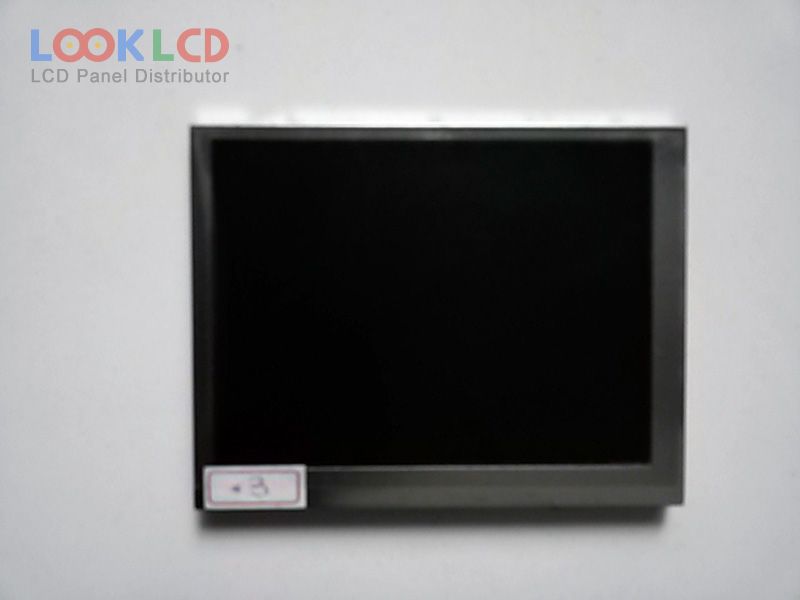

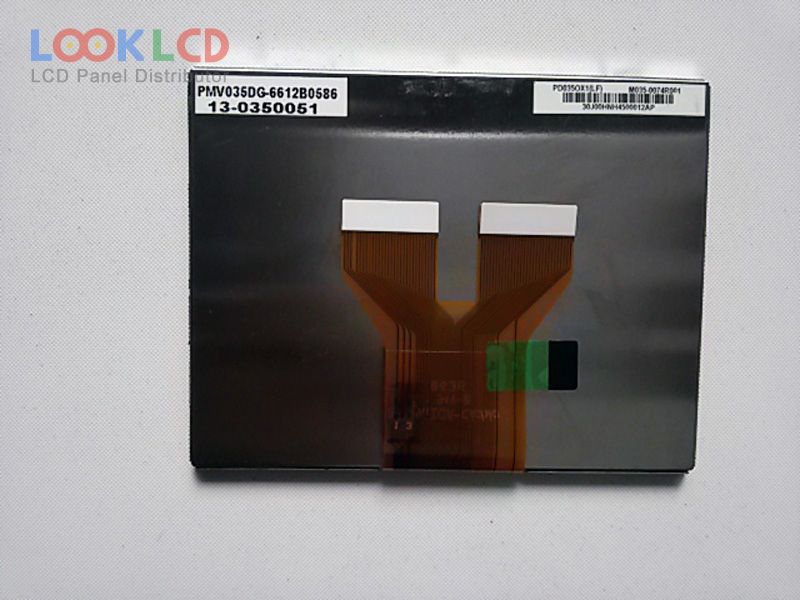

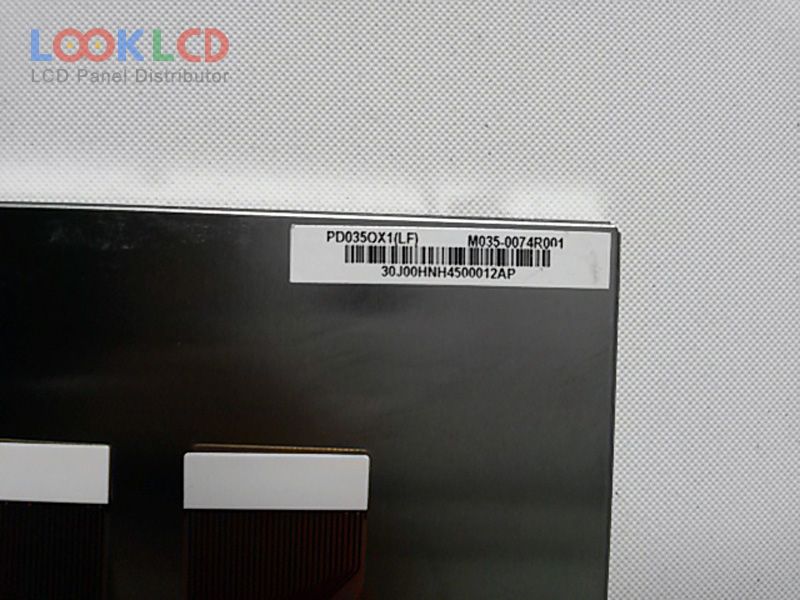

| Artikelnummer | PD035OX1 |
| Marke | E Ink |
| Größe | 3.5 |
| Anwendung | DSC |
| Auflösung | 320×234 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 400:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | Parallel/Serial |
| Panel-Marke | PVI |
| Panel-Modell | PD035OX1 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 320(RGB)×234 |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 71.6×52.65 mm |
| Umriss | 84.03×65.24×3.73 mm |
| Oberfläche | Antiglare |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit) |
| Reaktionszeit | 15/25 (Typ.)(Tr/Td) |
| Blickwinkel | 50/50/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 3S2PWLEDWithout Driver |
| Signalschnittstelle | Digital RGB (8/24-bit), CCIR601/656, 60 pins |
| Eingangsspannung | 3.3/3.3/5.0/15/-15V (Typ.)(VCC/VDD1/VDD2/VGH/VEE) |
| Anwendung | DSC |
| COM35H3M74UTC | ORTUSTECH | 3.5 | 480×640 |
| COM35H3P09UTC | ORTUSTECH | 3.5 | 480×640 |
| PD035OX1 | E Ink | 3.5 | 320×234 |
| PD035OX4 | E Ink | 3.5 | 320×234 |
| PD035QX1 | E Ink | 3.5 | 240×320 |
| PD035QX2 | E Ink | 3.5 | 320×240 |
| PD035VX2 | E Ink | 3.5 | 640×480 |
| PD035VX8 | E Ink | 3.5 | 480×640 |
| PD035VX9 | E Ink | 3.5 | 480×640 |
| TM035KDH08 | Tianma | 3.5 | 320×240 |
| 990000270 | TPO | 2.5 | 320×240 |
| 990000738 | TPO | 3.5 | 320×240 |
| A015AN03 V0 | AUO | 1.46 | 280×220 |
| A025DN01 V9 | AUO | 2.5 | 320×240 |
| A027DN01 VR | AUO | 2.7 | 320×240 |
| A030DW01 V3 | AUO | 3.0 | 320×240 |
| LH250Q01-TH02 | LG Display | 2.5 | 320×240 |
| LQ035LC111 | Innolux | 3.5 | 320×240 |
| LS020A8DX02 | SHARP | 2.0 | 320×240 |
| TM027CDH02 | Tianma | 2.7 | 320×240 |
