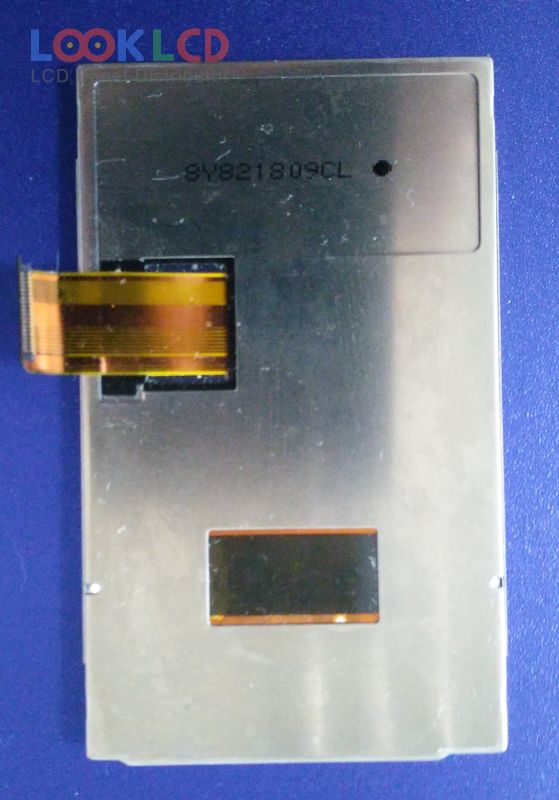

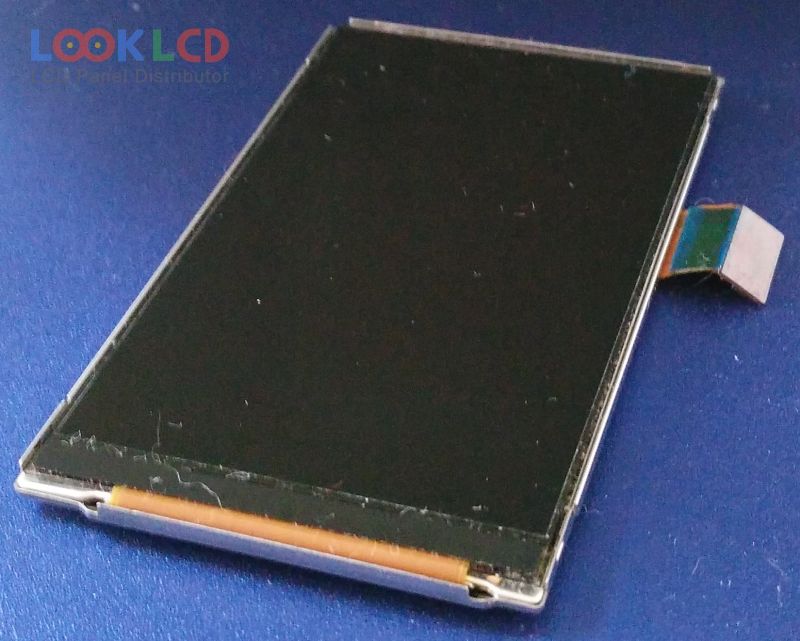

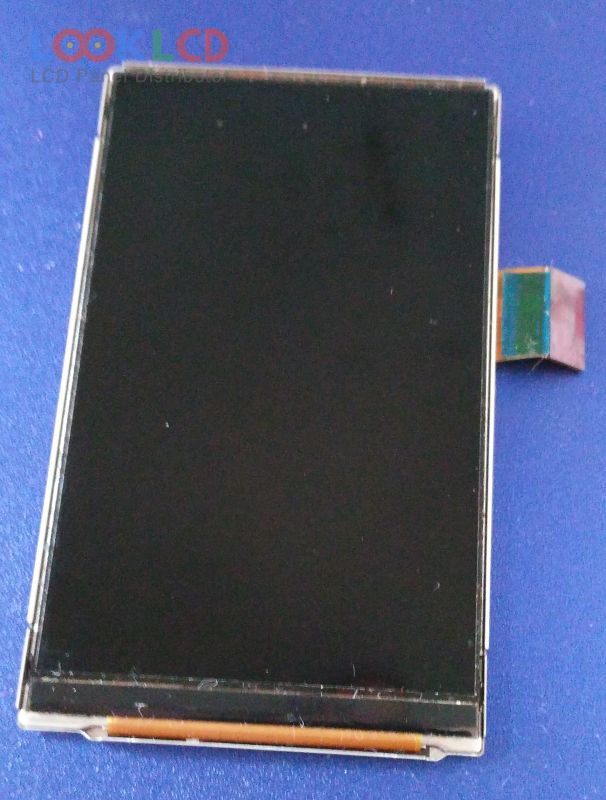

| Artikelnummer | LS030B3UX01D |
| Marke | SHARP |
| Größe | 3.0 |
| Anwendung | MPH |
| Auflösung | 240×400 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | CPU |
| Panel-Marke | SHARP |
| Panel-Modell | LS030B3UX01D |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 3.0 inch |
| Auflösung | 240(RGB)×400 , WQVGA |
| Anzeigemodus | Normally Black |
| aktiver Bereich | 38.88×64.8 mm |
| Umriss | 45.08×75 mm |
| Oberfläche | |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 500 : 1 (Typ.) |
| Farben anzeigen | 262K , CIE193175% |
| Reaktionszeit | 11/24 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 1S5PWLEDWithout Driver |
| Signalschnittstelle | CPU, 40 pins |
| Eingangsspannung | 1.8/2.8V (Typ.)(VDDIO/VCC) |
| Anwendung | MPH |
