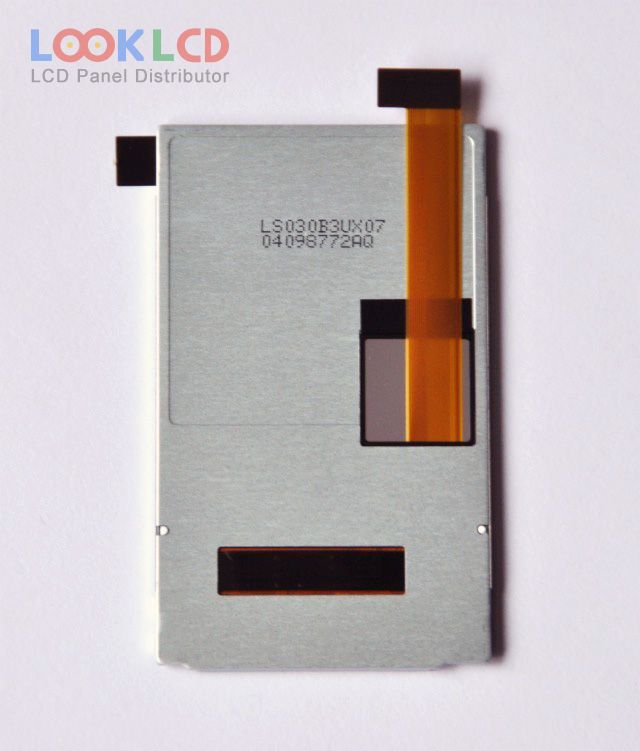

| Artikelnummer | LS030B3UX07 |
| Marke | SHARP |
| Größe | 3.0 |
| Anwendung | MPH |
| Auflösung | 240×400 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | CPU |
| Panel-Marke | SHARP |
| Panel-Modell | LS030B3UX07 |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 3.0 inch |
| Auflösung | 240(RGB)×400 , WQVGA |
| Anzeigemodus | Normally Black, Transmissive |
| aktiver Bereich | 38.88×64.8 mm |
| Umriss | 44.88×74.9 mm |
| Oberfläche | |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K , CIE193175% |
| Reaktionszeit | 11/24 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 1S5PWLEDWithout Driver |
| Signalschnittstelle | CPU, 40 pins |
| Eingangsspannung | 2.8/2.8V (Typ.)(VDDIO/VCC) |
| Anwendung | MPH |
| 990000881 | TPO | 3.0 | 960×480(dot) |
| 990001086 | Innolux | 3.0 | |
| COM30T3N64ZLG | ORTUSTECH | 3.0 | 320×240 |
| LS030B3UW01 | SHARP | 3.0 | 240×400 |
| LS030B3UX01D | SHARP | 3.0 | 240×400 |
| LS030B3UX07 | SHARP | 3.0 | 240×400 |
| LS030Q7DH01 | SHARP | 3.0 | 240×320 |
| LS030Y3DX01 | SHARP | 3.0 | 480×800 |
| LS030Y7PW01 | SHARP | 3.0 |
| 43WVF3A | SII | 4.3 | 480×800 |
| AMEJ006 | Samsung | 2.8 | 240×400 |
| AMS429QC08 | Samsung | 4.3 | 540×960 |
| BTL507212-W749L | BOE | 5.0 | 720×1280 |
| CLAF050LG41 TXX | CPT | 5.0 | 540×960 |
| HVA32WV1-D00 | HYDIS | 3.2 | 480×800 |
| LH400WS2-SD03 | LG Display | 4.0 | 640×1136 |
| LMS241GF31 | Samsung | 2.4 | 240×320 |
| LQ043Y1DX03D | SHARP | 4.3 | 480×800 |
| LS043K1SX02 | SHARP | 4.3 | 720×1280 |
