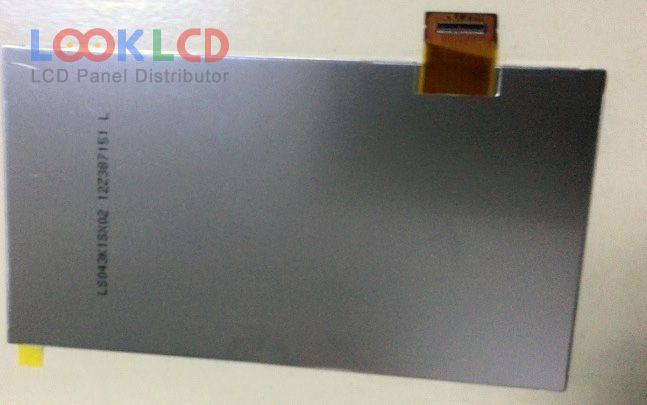

| Artikelnummer | LS043K1SX02 |
| Marke | SHARP |
| Größe | 4.3 |
| Anwendung | MPH |
| Auflösung | 720×1280 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | SHARP |
| Panel-Modell | LS043K1SX02 |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 4.3 inch |
| Auflösung | 720(RGB)×1280 , WXGA |
| Anzeigemodus | New Mode2, Normally Black, Transmissive |
| aktiver Bereich | 53.46×95.04 mm |
| Umriss | 57.26×104.74×1.85 mm |
| Oberfläche | |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193171% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 8S1PWLEDWithout Driver |
| Signalschnittstelle | MIPI (4 data lanes), 34 pins |
| Eingangsspannung | 1.8/5.4/-5.4V (Typ.)(IOVCC/VSP/VSN) |
| Anwendung | MPH |
| H430VL02 V4 | AUO | 4.3 | 480×800 |
| HSD043I9W1-B00 | HannStar | 4.3 | 480×272 |
| LH430WV1-SD02 | LG Display | 4.3 | 480×800 |
| LMS430HF01 | Samsung | 4.3 | |
| LMS430HF02 | Samsung | 4.3 | 480×272 |
| LQ043T1LX01A | SHARP | 4.3 | 540×960 |
| LQ043T3DG01 | SHARP | 4.3 | 480×272 |
| LS043K1SX02 | SHARP | 4.3 | 720×1280 |
| LS043T1LX01A | SHARP | 4.3 | 540×960 |
| LTE430WQ-F0B | Samsung | 4.3 | 480×272 |
| ACX465AKM-7 | JDI | 5.9 | 1080×1920 |
| AMEJ006 | Samsung | 2.8 | 240×400 |
| AMS369FG06-0 | Samsung | 3.7 | 480×800 |
| AMS410GJ02-0 | Samsung | 4.1 | 480×800 |
| AMS429QC08 | Samsung | 4.3 | 540×960 |
| CLAN055WA41 3XB | CPT | 5.5 | 720×1280 |
| H497DAN01.0 | AUO | 5.0 | 1080×1920 |
| LH350WS1-SH02 | LG Display | 3.5 | 640×960 |
| LPM055A138A | JDI | 5.5 | 1440×2560 |
| TD025THED2 | TPO | 2.5 | 320×240 |
