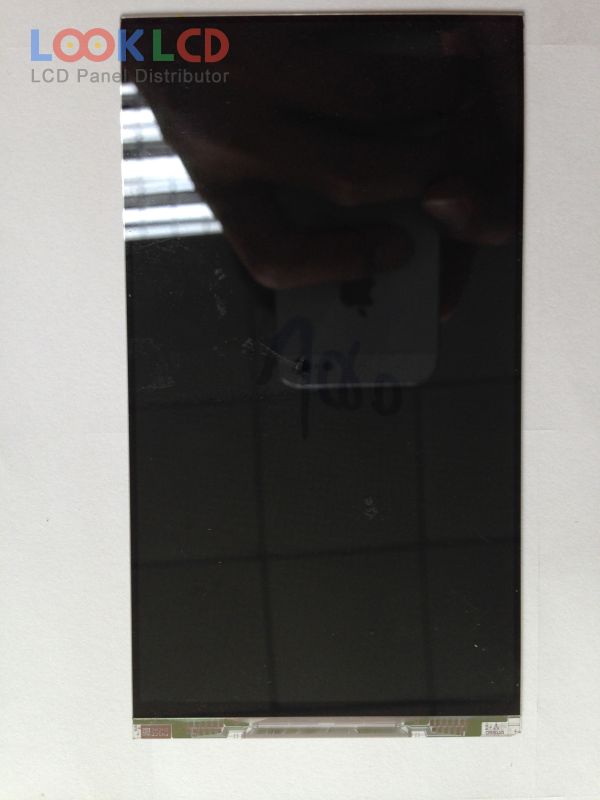

| Artikelnummer | CLAN055WA41 3XB |
| Marke | CPT |
| Größe | 5.5 |
| Anwendung | MPH |
| Auflösung | 720×1280 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | |
| Panel-Marke | CPT |
| Panel-Modell | CLAN055WA41 3XB 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 5.5 inch |
| Auflösung | 720(RGB)×1280 , WXGA |
| Anzeigemodus | HFFS, Normally Black, Transmissive |
| aktiver Bereich | 68.04×120.96 mm |
| Umriss | 70.84×128.96 mm |
| Oberfläche | Hard coating |
| Glastiefe | 0.20+0.20 mm |
| Durchlässigkeit | 5.0% (Typ.)(with APCF) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193170% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Treiber-IC | COG Suggest OTM1283A-C35 |
| Eingangsspannung | 1.8/2.8/2.8V (Typ.)(VDDI/VCIVCC) |
| Anwendung | MPH |
