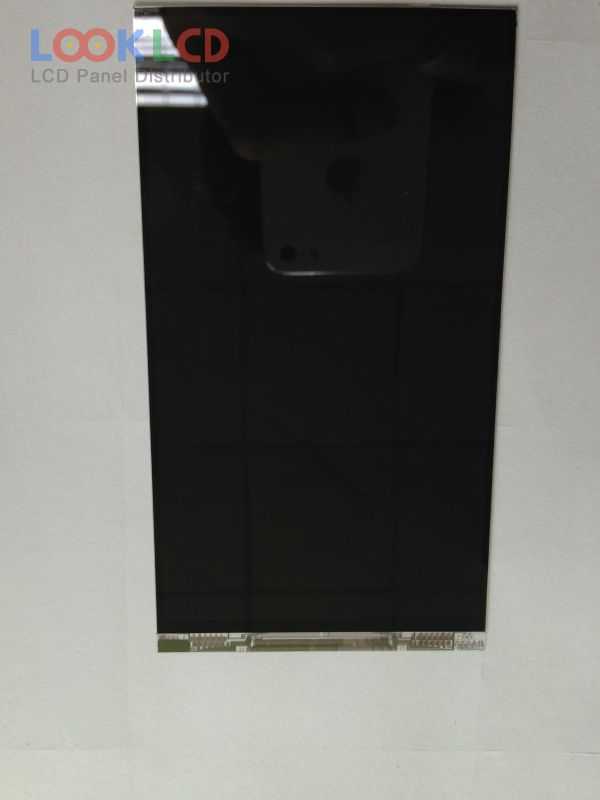

| Artikelnummer | CLAF050LG41 TXX |
| Marke | CPT |
| Größe | 5.0 |
| Anwendung | MPH |
| Auflösung | 540×960 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 500:1 |
| Farben | |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | |
| Panel-Marke | CPT |
| Panel-Modell | CLAF050LG41 TXX 4 Compatible model |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 5.0 inch |
| Auflösung | 540(RGB)×960 , qHD |
| Anzeigemodus | HFFS, Normally Black, Transmissive |
| aktiver Bereich | 61.965×110.16 mm |
| Umriss | 64.87×118.31×0.4 mm |
| Oberfläche | Without Polarizer |
| Glastiefe | 0.20+0.20 mm |
| Durchlässigkeit | 3.74% (Typ.)(with Polarizer) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | , CIE193170% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Treiber-IC | Suggest NT35516, OTM9608, OTM9605 |
| Anwendung | MPH |
