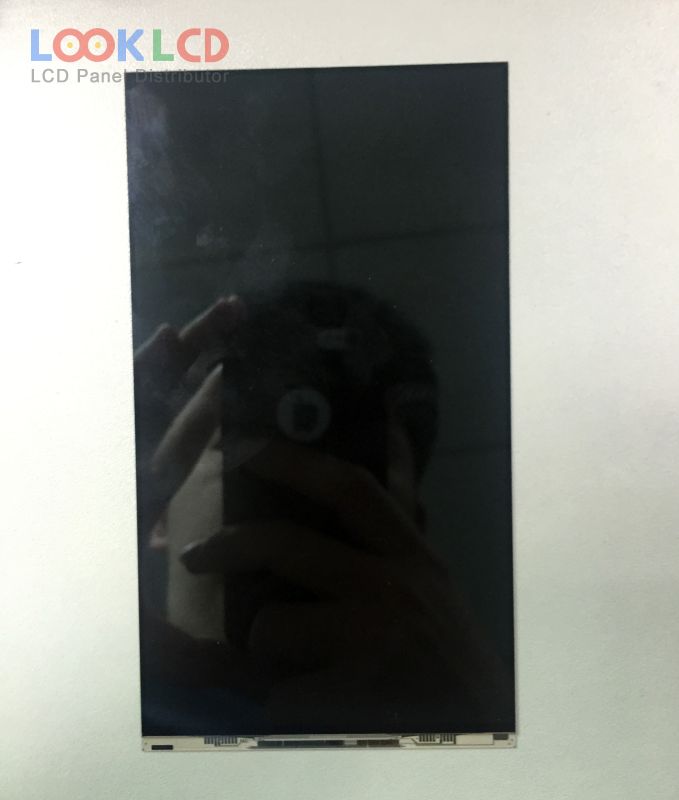

| Artikelnummer | H495TAN01.1 |
| Marke | AUO |
| Größe | 5.0 |
| Anwendung | MPH |
| Auflösung | 720×1280 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 900:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | |
| Panel-Marke | AUO |
| Panel-Modell | H495TAN01.1 |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 5.0 inch |
| Auflösung | 720(RGB)×1280 , WXGA |
| Anzeigemodus | AHVA, Normally Black, Transmissive |
| aktiver Bereich | 61.688×109.632 mm |
| Umriss | 63.67×115.85×0.3 mm |
| Oberfläche | |
| Glastiefe | 0.15+0.15 mm |
| Durchlässigkeit | 3.26% (Typ.)(with Polarizer) |
| Kontrastverhältnis | 900:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193194% |
| Reaktionszeit | 35 (Max.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Min.)(CR≥10)(L/R/U/D) |
| Treiber-IC | COG Suggest HX8394-D21, N35521-DPAU, N35521S-DP8AU, OTM1284A-C6, OTM1287A-C8, R61318, RM68200 |
| Anwendung | MPH |
