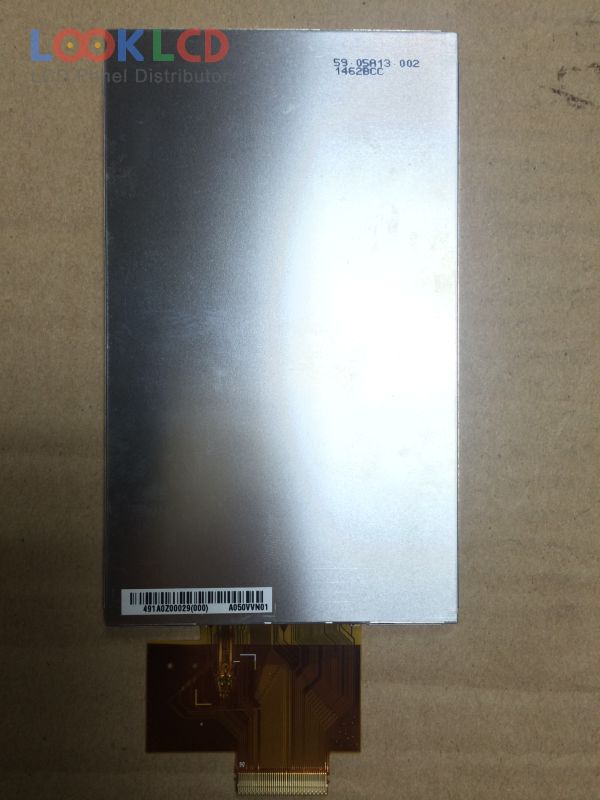

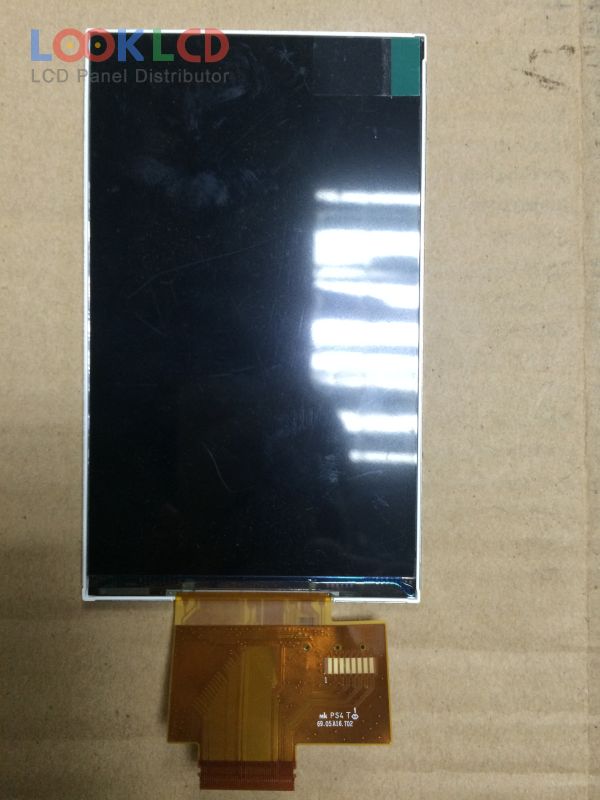

| Artikelnummer | A050VVN01.0 |
| Marke | AUO |
| Größe | 5.0 |
| Anwendung | EBK |
| Auflösung | 480×800 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | AUO |
| Panel-Modell | A050VVN01.0 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.0 inch |
| Auflösung | 480(RGB)×800 , WVGA |
| Anzeigemodus | AMVA, Normally Black, Transmissive |
| aktiver Bereich | 64.8×108 mm |
| Umriss | 71.2×119.5×2.81 mm |
| Oberfläche | |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 20/15 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S2PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 90 pins |
| Eingangsspannung | 2.8/2.8V (Typ.)(VCI/VDDI) |
| Anwendung | EBK |
