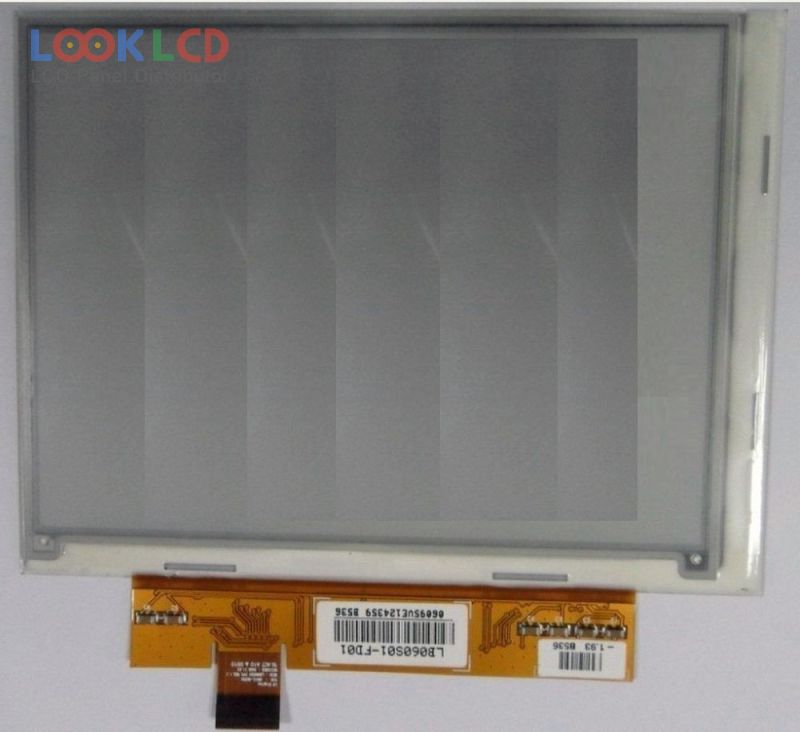

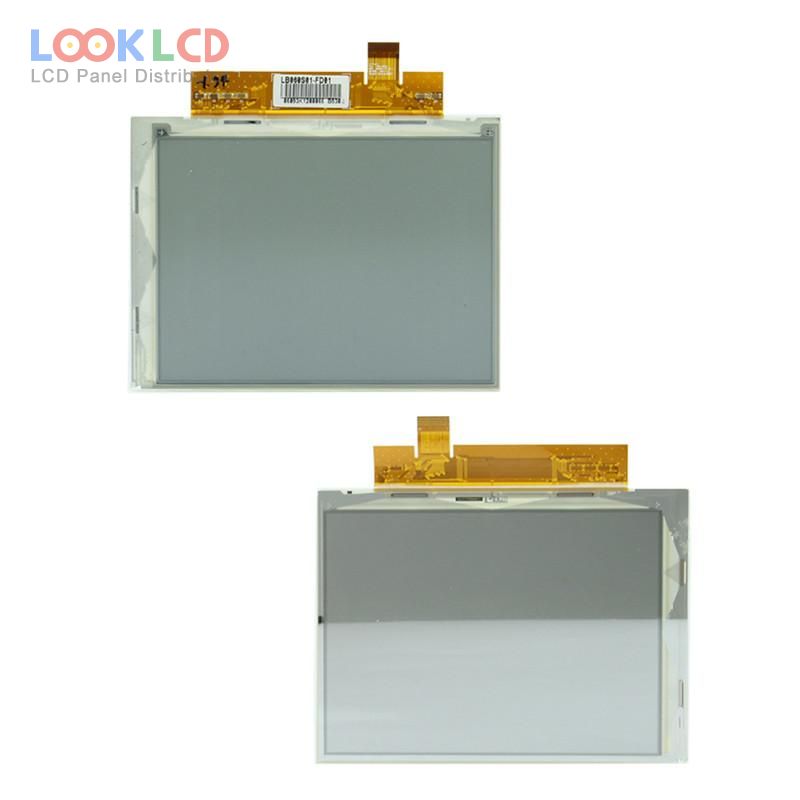

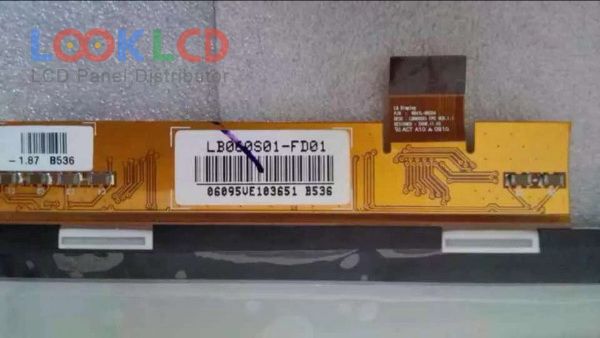

| Artikelnummer | LB060S01-FD01 |
| Marke | LG Display |
| Größe | 6.0 |
| Anwendung | EBK |
| Auflösung | 800×600 |
| Komposition | EPD |
| Helligkeit | |
| CR | |
| Farben | Grayscale |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | Parallel Data |
| Panel-Marke | LG.Philips LCD |
| Panel-Modell | LB060S01-FD01 |
| Plattentyp | EPD , EPD |
| Panelgröße | 6.0 inch |
| Auflösung | 800×600 , SVGA |
| aktiver Bereich | 122.4×90.6 mm |
| Umriss | 137.9×104.1 mm |
| Oberfläche | Antiglare |
| Helligkeit | |
| Kontrastverhältnis | 8:1 (Typ.)(Reflective) |
| Farben anzeigen | Grayscale (3-bit) |
| Blickwinkel | 70/70/70/70 (Max.)(CR≥6)(L/R/U/D) |
| Signalschnittstelle | Parallel Data (8-bit), 39 pins |
| Eingangsspannung | 3.3/22/-20V (Typ.)(VDD/VGH/VGL) |
| Anwendung | EBK |
