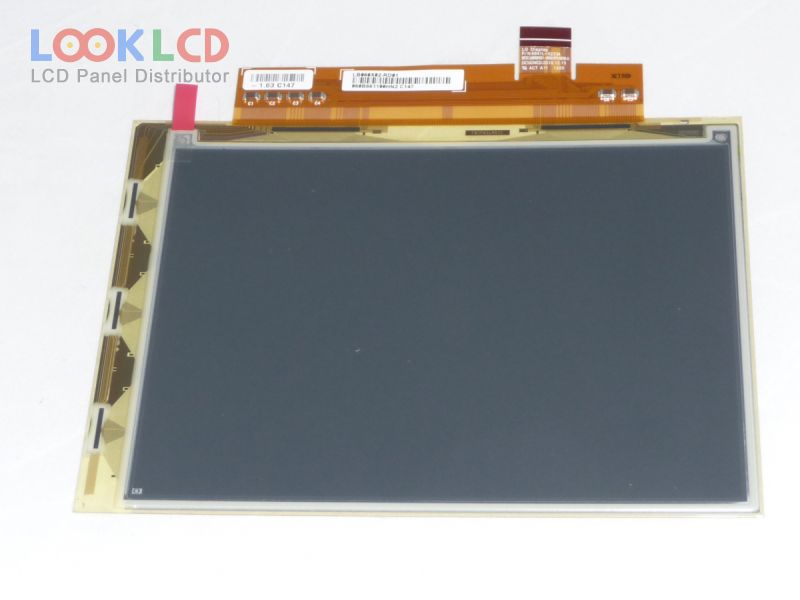

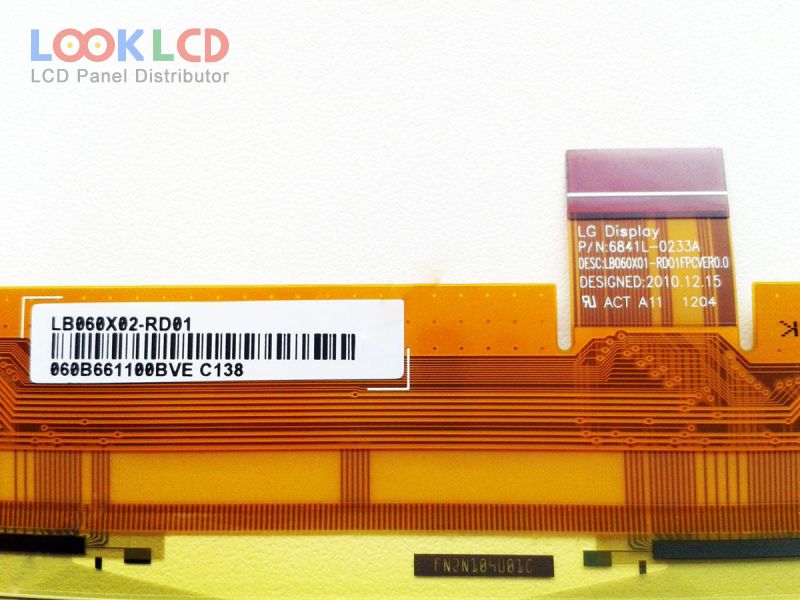

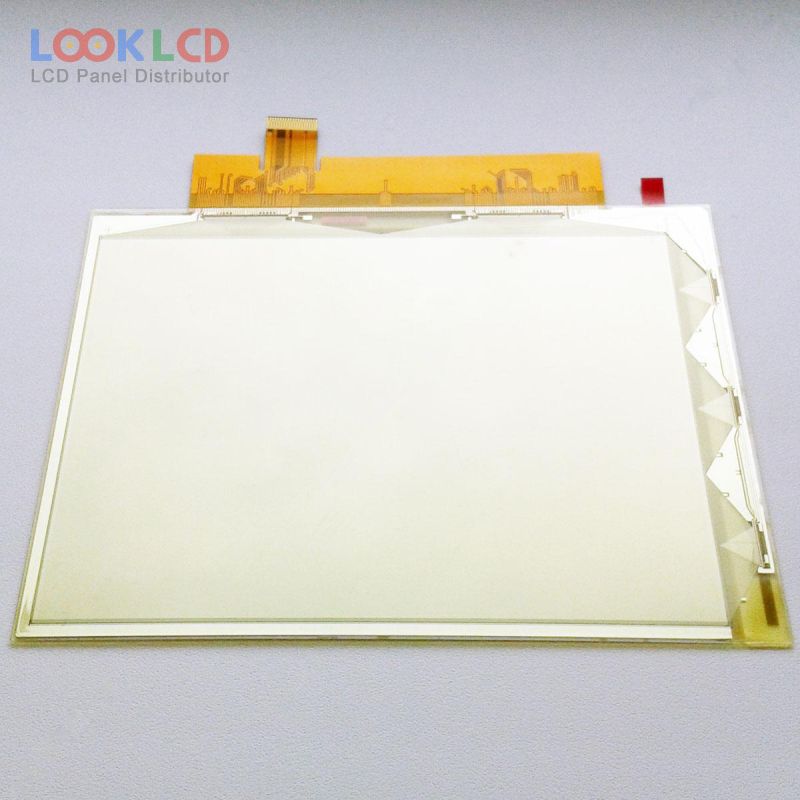

| Artikelnummer | LB060X02-RD01 |
| Marke | LG Display |
| Größe | 6.0 |
| Anwendung | EBK |
| Auflösung | 1024×768 |
| Komposition | EPD |
| Helligkeit | |
| CR | |
| Farben | Grayscale |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | Parallel Data |
| Panel-Marke | LG Display |
| Panel-Modell | LB060X02-RD01 |
| Plattentyp | EPD , EPD |
| Panelgröße | 6.0 inch |
| Auflösung | 1024×768 , XGA |
| aktiver Bereich | 122.368×90.624 mm |
| Umriss | 137.9×104.1 mm |
| Oberfläche | Antiglare |
| Helligkeit | |
| Kontrastverhältnis | 12:1 (Typ.)(Reflective) |
| Farben anzeigen | Grayscale (4-bit) |
| Blickwinkel | 70/70/70/70 (Typ.)(CR≥10)(L/R/U/D) |
| Signalschnittstelle | Parallel Data (8-bit), 39 pins |
| Eingangsspannung | 3.3/-20/22V (Typ.)(VDD/VEE/GVDD) |
| Anwendung | EBK |
