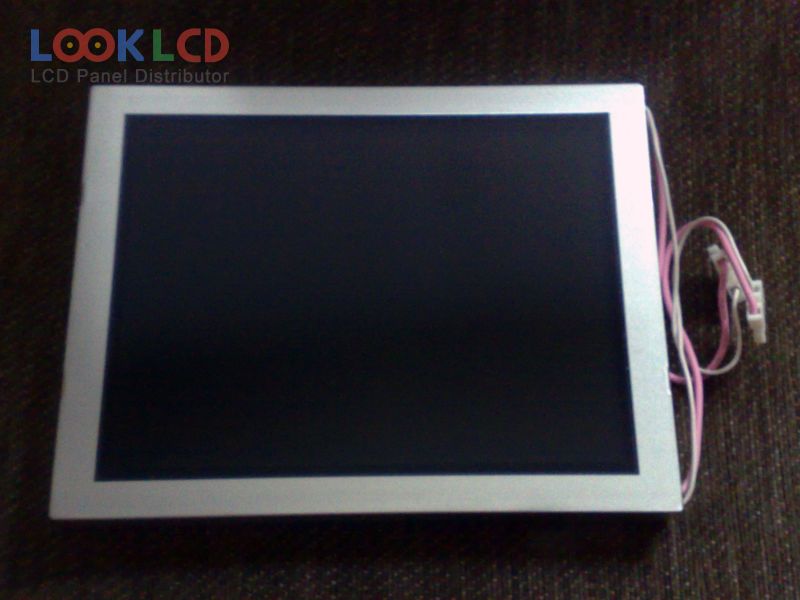

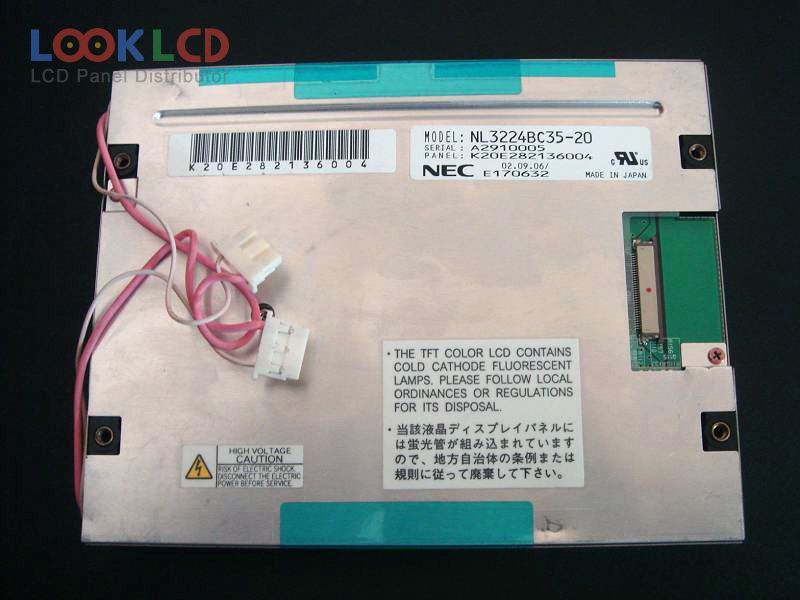

| Artikelnummer | NL3224BC35-20 |
| Marke | NLT |
| Größe | 5.5 |
| Anwendung | IA |
| Auflösung | 320×240 |
| Komposition | LCM |
| Helligkeit | 400 |
| CR | 400:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | TTL |
| Panel-Marke | NEC |
| Panel-Modell | NL3224BC35-20 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.5 inch |
| Auflösung | 320(RGB)×240 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 111.36×83.52 mm |
| Umriss | 134×104.5×13 mm |
| Oberfläche | Antiglare, Hard coating (3H), Antireflection |
| Helligkeit | 400 cd/m² (Typ.) |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193150% |
| Reaktionszeit | 5/25 (Typ.)(Tr/Td) |
| Blickwinkel | 55/55/50/40 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | CMOS (1 ch, 6-bit), 33 pins |
| Eingangsspannung | 3.3/5.0V (Typ.)(VCC) |
| Anwendung | IA |
