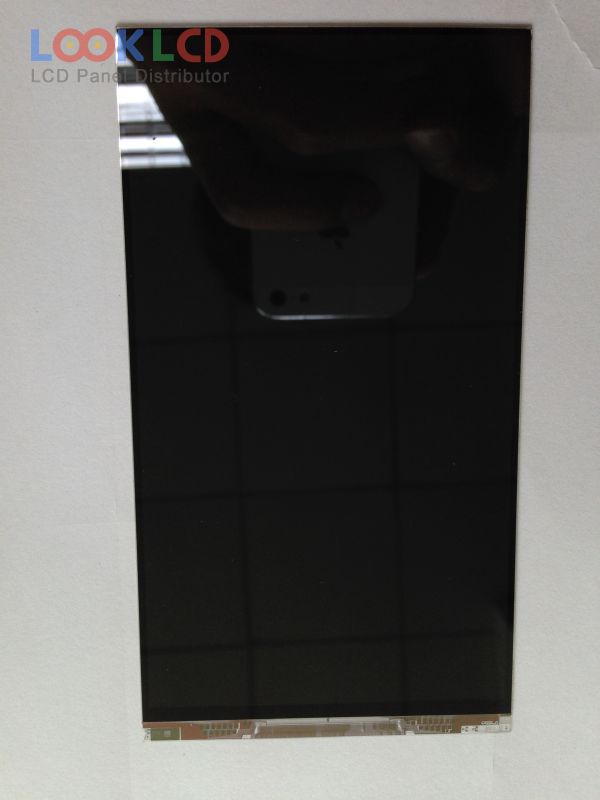

| Artikelnummer | CLAF055LA41 TXX |
| Marke | CPT |
| Größe | 5.5 |
| Anwendung | MPH |
| Auflösung | 540×960 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 800:1 |
| Farben | |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | |
| Panel-Marke | CPT |
| Panel-Modell | CLAF055LA41 TXX 7 Compatible model |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 5.5 inch |
| Auflösung | 540(RGB)×960 , qHD |
| Anzeigemodus | FFS, Normally Black, Transmissive |
| aktiver Bereich | 68.04×120.96 mm |
| Umriss | 70.84×128.96 mm |
| Oberfläche | Without Polarizer |
| Glastiefe | 0.20+0.20 mm |
| Durchlässigkeit | 5.2% (Typ.)(with APCF) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | , CIE193170% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Treiber-IC | COG Suggest ILI9807, NT35517, OTM9605A-C32 |
| Anwendung | MPH |
| CLAF055LA41 TXX | CPT | 5.5 | 540×960 |
| CLAF055WB41 TXX | CPT | 5.5 | 720×1280 |
| H546DAN01.2 | AUO | 5.5 | 1080×1920 |
| LPM055A138A | JDI | 5.5 | 1440×2560 |
| LQ055T3SX02 | SHARP | 5.5 | 1080×1920 |
| LS055R1SC01 | SHARP | 5.5 | 1440×2560 |
| LTA055B0R0A | TOSHIBA | 5.5 | 480×234 |
| NL3224AC35-06 | NLT | 5.5 | 320×240 |
| NL3224BC35-20 | NLT | 5.5 | 320×240 |
| UG-5664ASYGF01 | WiseChip | 5.5 | 256×64 |
| BT055FWM-N00 | BOE | 5.5 | 480×854 |
| CLAF058LA31 | CPT | 5.8 | 540×960 |
| H546DAN01.2 | AUO | 5.5 | 1080×1920 |
| H572DAN01.2 | AUO | 5.7 | 1080×1920 |
| H650DAN01.0 | AUO | 6.4 | 1080×1920 |
| LMS316CC01 | Samsung | 3.2 | 640×360 |
| LMS340KC01-001 | Samsung | 3.4 | 720×480 |
| LS030Y3DX01 | SHARP | 3.0 | 480×800 |
| LTM030DH60 | TOSHIBA | 3.0 | 240×427 |
| OEL9M0053-Y-E | Other | 1.6 | 128×64 |
