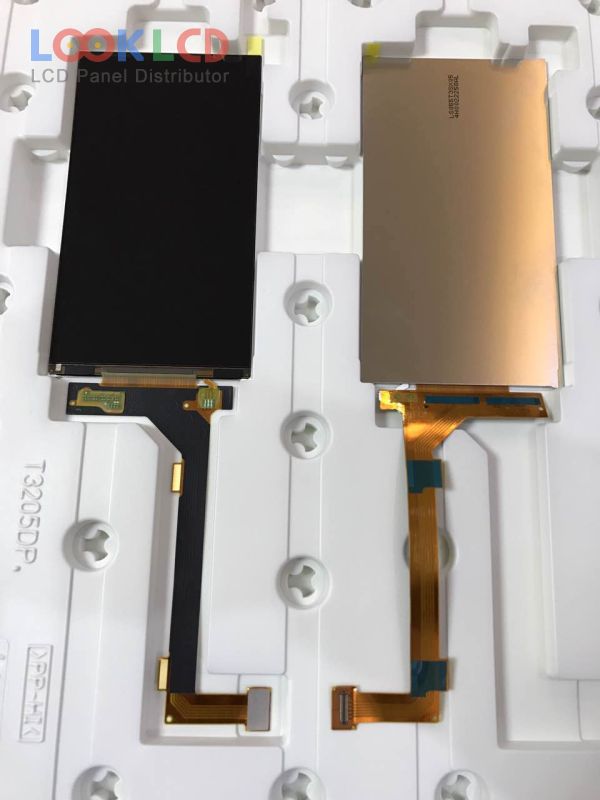

| Artikelnummer | LS055T3SX05 |
| Marke | SHARP |
| Größe | 5.5 |
| Anwendung | MPH |
| Auflösung | 1080×1920 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | SHARP |
| Panel-Modell | LS055T3SX05 |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 5.5 inch |
| Auflösung | 1080(RGB)×1920 , FHD |
| Anzeigemodus | Normally Black, Transmissive |
| aktiver Bereich | 68.04×120.96 mm |
| Umriss | 70.44×129.59×1.61 mm |
| Oberfläche | |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193185% |
| Reaktionszeit | 35 (Max.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 6S2PWLEDWithout Driver |
| Signalschnittstelle | MIPI (4 data lanes), 40 pins |
| Eingangsspannung | 1.8/5.0/-5.0V (Typ.)(IOVCC/AVDD+/AVDD-) |
| Anwendung | MPH |
