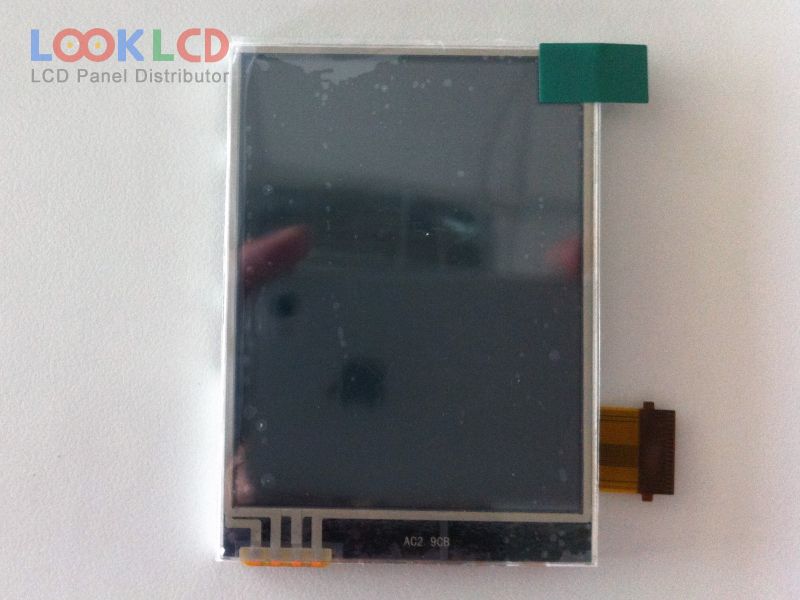

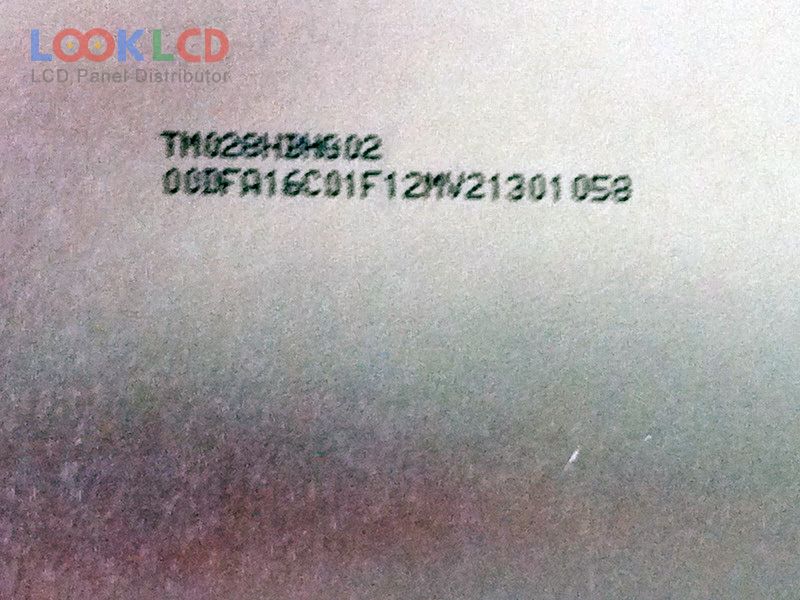

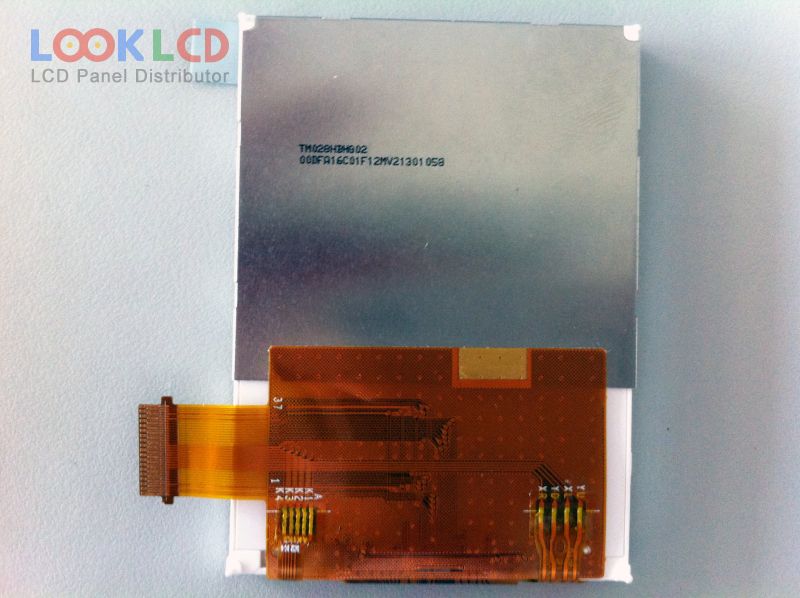

| Artikelnummer | TM028HBHG02 |
| Marke | Tianma |
| Größe | 2.8 |
| Anwendung | MPH |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 210 |
| CR | 500:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | CPU |
| Panel-Marke | TIANMA |
| Panel-Modell | TM028HBHG02 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 2.8 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 43.2×57.6 mm |
| Umriss | 50×69.2×4.4 mm |
| Oberfläche | Clear |
| Helligkeit | 210 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193165% |
| Reaktionszeit | 20 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 1S4PWLEDWithout Driver |
| Signalschnittstelle | 8/16-bit 6080/8080 parallel, 37 pins |
| Eingangsspannung | (1.8/2.8)/2.8V (Typ.)(VCC/VCI) |
| Anwendung | MPH |
