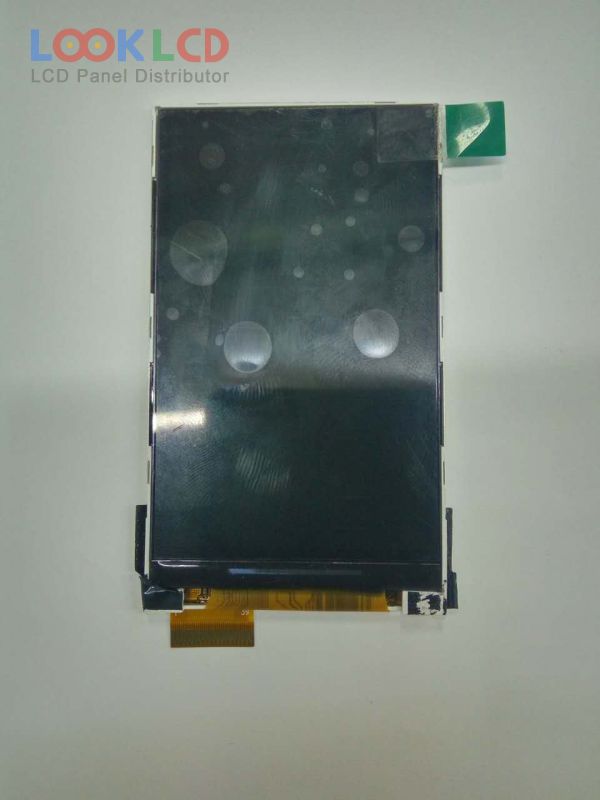

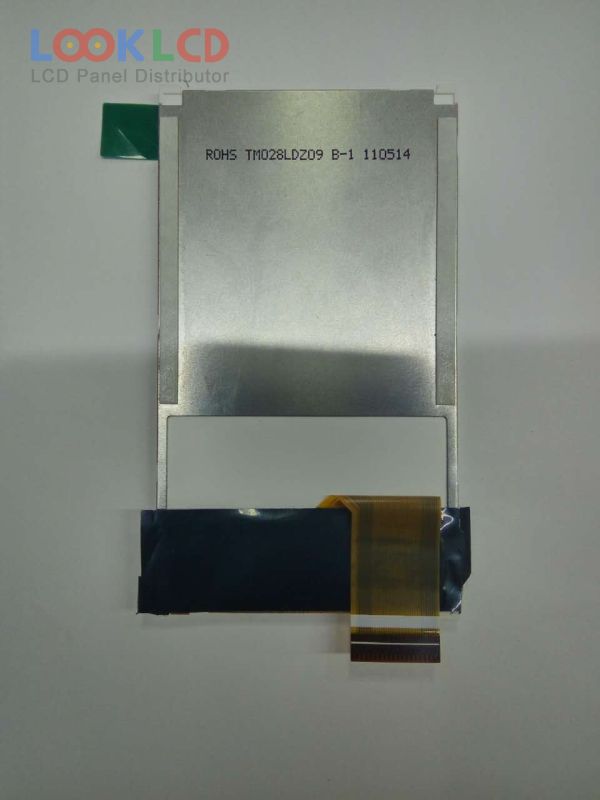

| Artikelnummer | TM028LDZ09 |
| Marke | Tianma |
| Größe | 2.8 |
| Anwendung | MPH |
| Auflösung | 240×400 |
| Komposition | LCM |
| Helligkeit | 240 |
| CR | 450:1 |
| Farben | 65K/262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | CPU |
| Panel-Marke | TIANMA |
| Panel-Modell | TM028LDZ09 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 2.8 inch |
| Auflösung | 240(RGB)×400 , WQVGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 36.72×61.2 mm |
| Umriss | 42×72.8 mm |
| Oberfläche | |
| Helligkeit | 240 cd/m² (Typ.) |
| Kontrastverhältnis | 450:1 (Typ.) |
| Farben anzeigen | 65K/262K , CIE193156% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1S4PWLEDWithout Driver |
| Signalschnittstelle | CPU, 39 pins |
| Eingangsspannung | (1.8/2.8)/2.8V (Typ.)(VDDIO/VDD) |
| Anwendung | MPH |
