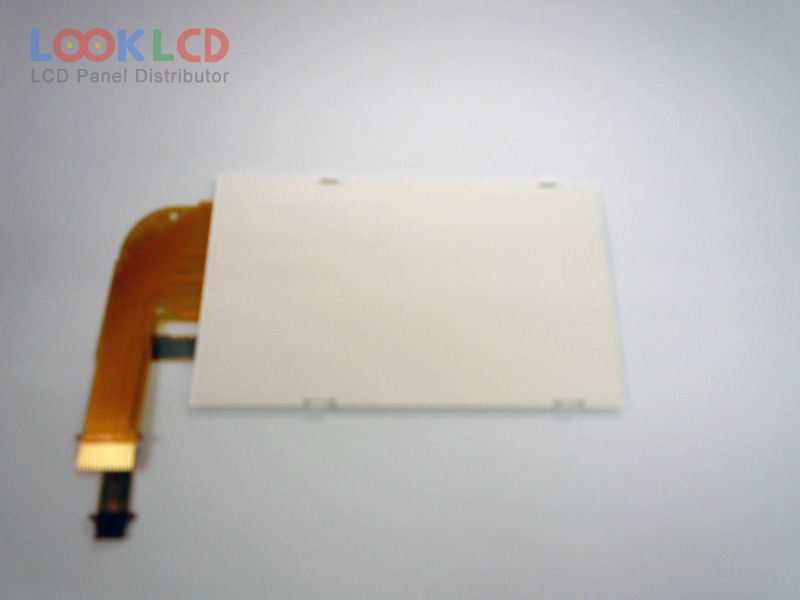

| Artikelnummer | LS028B8PX05 |
| Marke | SHARP |
| Größe | 2.8 |
| Anwendung | MPH |
| Auflösung | 240×400 |
| Komposition | LCM |
| Helligkeit | 280 |
| CR | 500:1 |
| Farben | 4096 |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LS028B8PX05 |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 2.8 inch |
| Auflösung | 240(RGB)×400 , WQVGA |
| Anzeigemodus | ASV, Normally Black, Transflective |
| aktiver Bereich | 36×60 mm |
| Umriss | 41.2×69.28×1.7 mm |
| Oberfläche | Hard coating (3H) |
| Helligkeit | 280 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| Farben anzeigen | 4096 |
| Reaktionszeit | 13/30 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥2)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 1S5PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 4-bit), 29 pins |
| Eingangsspannung | 10.6/-5.3V (Typ.)(VDD/GVSS) |
| Anwendung | MPH |
