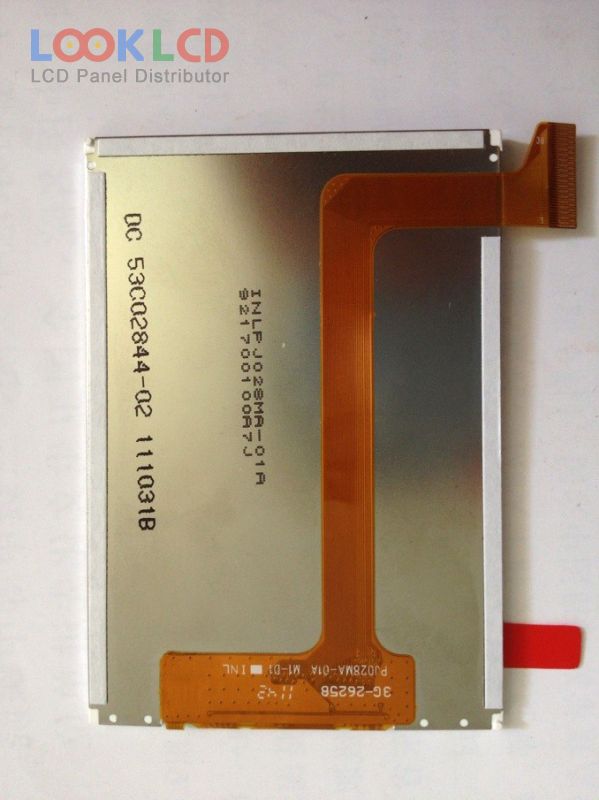

| Artikelnummer | PJ028MA-01A |
| Marke | Innolux |
| Größe | 2.8 |
| Anwendung | MPH |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 290 |
| CR | 450:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | CHIMEI INNOLUX |
| Panel-Modell | PJ028MA-01A |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 2.8 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | Normally Black, Transmissive |
| aktiver Bereich | 43.2×57.6 mm |
| Umriss | 47.74×67.95×2.3 mm |
| Oberfläche | |
| Helligkeit | 290 cd/m² (Typ.) |
| Kontrastverhältnis | 450:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193170% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 80Hz |
| Lampentyp | 1S4PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 6-bit) + SPI, 39 pins |
| Eingangsspannung | (1.8/2.8)/2.8V (Typ.)(IOVCC/VCC) |
| Anwendung | MPH |
