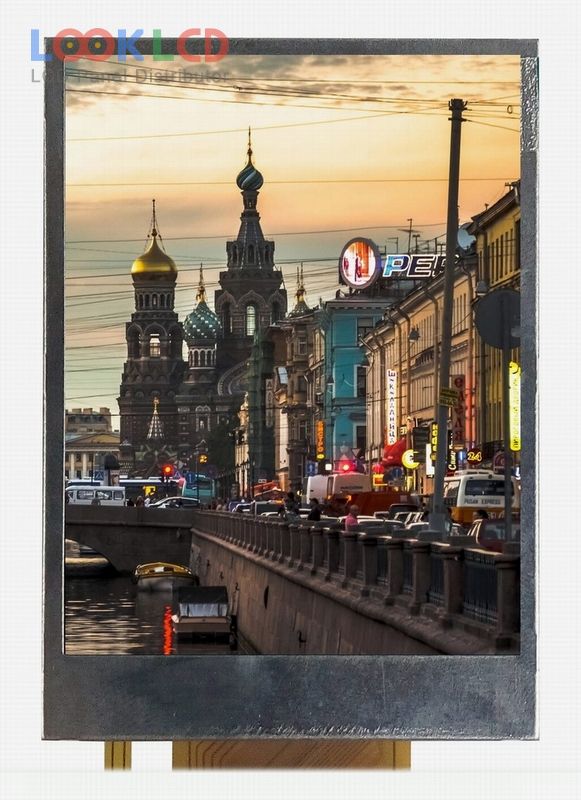

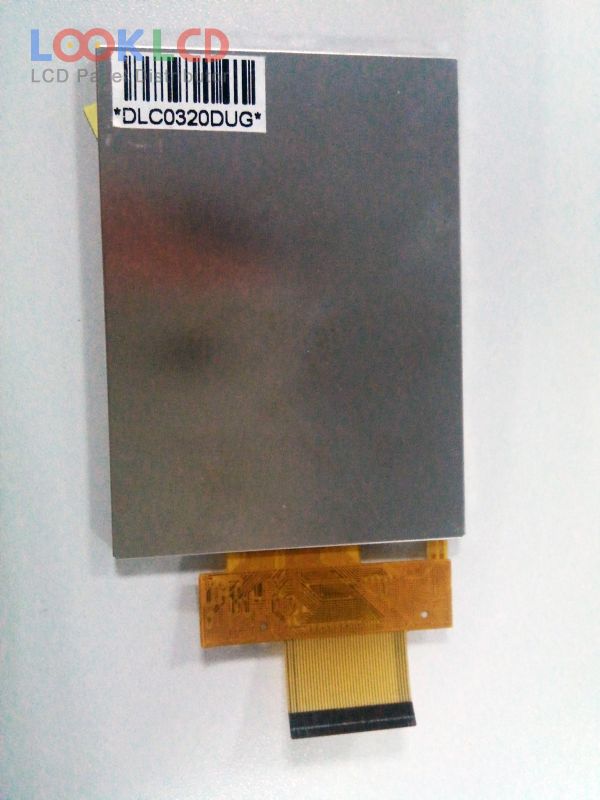

| Artikelnummer | DLC0320DUG |
| Marke | Other |
| Größe | 3.2 |
| Anwendung | MPH |
| Auflösung | 240×320 |
| Komposition | LCM |
| Helligkeit | 110 |
| CR | 30:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | CPU/RGB/SPI |
| Panel-Marke | DLC |
| Panel-Modell | DLC0320DUG 1 Compatible model |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.2 inch |
| Auflösung | 240(RGB)×320 , QVGA |
| Anzeigemodus | TN, Normally White, Transflective |
| aktiver Bereich | 48.6×64.8 mm |
| Umriss | 57.54×79.2 mm |
| Oberfläche | |
| Helligkeit | 110 cd/m² (Typ.) |
| Kontrastverhältnis | 30:1 (Typ.)(Transmissive)2.5:1 (Typ.)(Reflective) |
| Farben anzeigen | 262K (6-bit), CIE193142% |
| Reaktionszeit | 40 (Typ.)(Tr+Td) |
| Blickwinkel | 40/25/65/30 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 5S1PWLEDWithout Driver |
| Signalschnittstelle | CPU/RGB/SPI, 40 pins |
| Eingangsspannung | 2.8/2.8V (Typ.)(VCI/VDD3) |
| Anwendung | MPH |
