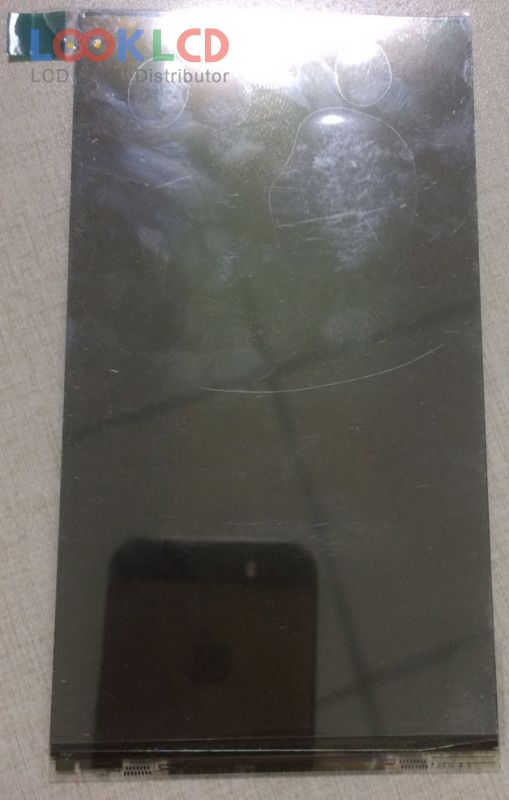

| Artikelnummer | CM546B1-002 |
| Marke | CSOT |
| Größe | 5.5 |
| Anwendung | MPH |
| Auflösung | 1080×1920 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 1200:1 |
| Farben | |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | |
| Panel-Marke | CSOT |
| Panel-Modell | CM546B1-002 |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 5.5 inch |
| Auflösung | 1080(RGB)×1920 , FHD |
| Anzeigemodus | FFS, Normally Black, Transmissive |
| aktiver Bereich | 68.04×120.96 mm |
| Umriss | 69.64×127.19 mm |
| Oberfläche | With Polarizer |
| Glastiefe | 0.15+0.15 mm |
| Durchlässigkeit | 4.81% (Typ.)(with APCF) |
| Kontrastverhältnis | 1200:1 (Typ.) |
| Farben anzeigen | , CIE193172% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Anwendung | MPH |
