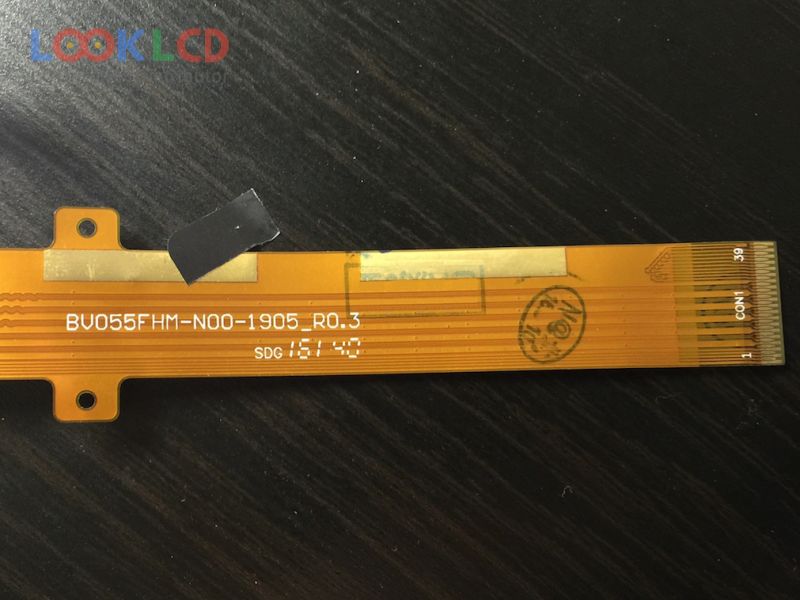

| Artikelnummer | BV055FHM-N00 |
| Marke | BOE |
| Größe | 5.5 |
| Anwendung | MPH |
| Auflösung | 1080×1920 |
| Komposition | CELL |
| Helligkeit | 0 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | No B/L |
| Schnittstelle | |
| Panel-Marke | BOE |
| Panel-Modell | BV055FHM-N00 |
| Plattentyp | a-Si TFT-LCD , CELL |
| Panelgröße | 5.5 inch |
| Auflösung | 1080(RGB)×1920 , FHD |
| Anzeigemodus | Normally Black, Transmissive |
| aktiver Bereich | 68.04×120.96 mm |
| Umriss | 70.44×127.61 mm |
| Oberfläche | |
| Durchlässigkeit | 4.2% (Typ.)(with Polarizer) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193170% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Treiber-IC | Suggest NT35532, HX8398-B |
| Anwendung | MPH |
