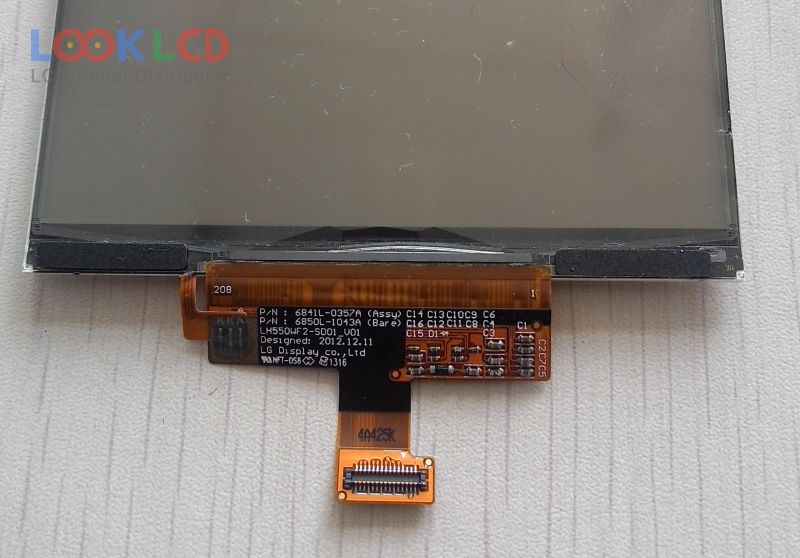

| Artikelnummer | LH550WF2-SD01 |
| Marke | LG Display |
| Größe | 5.5 |
| Anwendung | MPH |
| Auflösung | 1080×1920 |
| Komposition | LCM |
| Helligkeit | 450 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | LG Display |
| Panel-Modell | LH550WF2-SD01 |
| Plattentyp | LTPS TFT-LCD , LCM |
| Panelgröße | 5.5 inch |
| Auflösung | 1080(RGB)×1920 , FHD |
| Anzeigemodus | AH3-IPS, Normally Black, Transmissive |
| aktiver Bereich | 68.04×120.96 mm |
| Oberfläche | |
| Helligkeit | 450 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193170% |
| Reaktionszeit | 17/18 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | WLED |
| Signalschnittstelle | MIPI (4 data lanes) |
| Anwendung | MPH |
