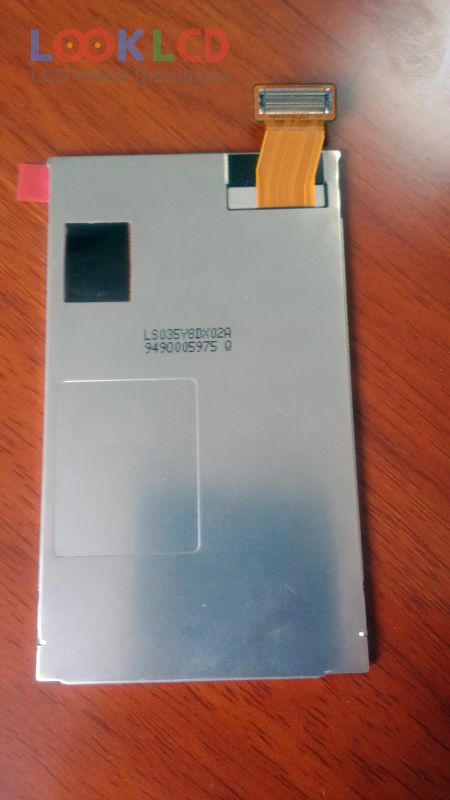

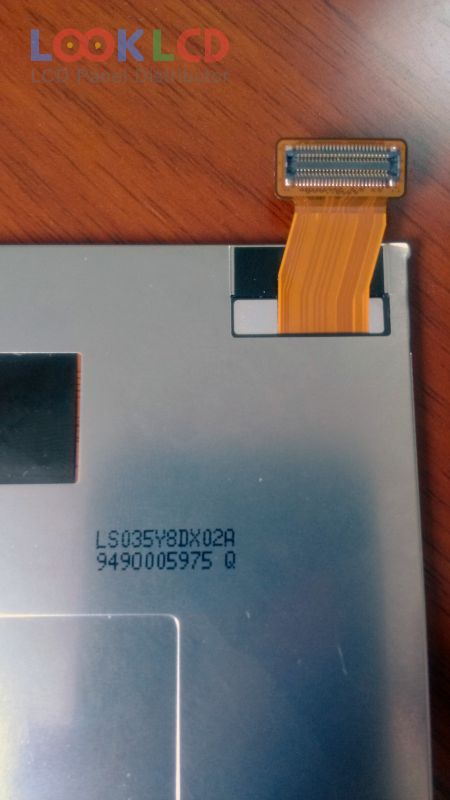

| Artikelnummer | LS035Y8DX02A |
| Marke | SHARP |
| Größe | 3.5 |
| Anwendung | MPH |
| Auflösung | 480×800 |
| Komposition | LCM |
| Helligkeit | 500 |
| CR | 500:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | TTL |
| Panel-Marke | SHARP |
| Panel-Modell | LS035Y8DX02A |
| Plattentyp | CG-Silicon , LCM |
| Panelgröße | 3.5 inch |
| Auflösung | 480(RGB)×800 , WVGA |
| Anzeigemodus | ASV, Normally Black, Transflective |
| aktiver Bereich | 45.36×75.6 mm |
| Umriss | 51.16×86.45 mm |
| Oberfläche | |
| Helligkeit | 500 cd/m² (Typ.) |
| Kontrastverhältnis | 500:1 (Typ.)(Transmissive)10:1 (Typ.)(Reflective) |
| Farben anzeigen | 16.7M (8-bit), CIE193150% |
| Reaktionszeit | 11/24 (Typ.)(Tr/Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥5)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 7S1PWLEDWithout Driver |
| Signalschnittstelle | Parallel RGB (1 ch, 8-bit) + SPI, 50 pins |
| Eingangsspannung | 1.8/2.8V (Typ.)(VDDIO/VCC) |
| Anwendung | MPH |
| 990000738A | Innolux | 3.5 | 320×240 |
| DLC0350BMG-1 | Other | 3.5 | 240×320 |
| EL160.80.50 ET | Lumineq | 3.5 | 160×80 |
| LB035Q04-TD08 | LG Display | 3.5 | 320×240 |
| LMS350GF03-001 | Samsung | 3.5 | 320×240 |
| LS035Y8DX02A | SHARP | 3.5 | 480×800 |
| LS035Y8DX04A | SHARP | 3.5 | 480×800 |
| PA035XSL | E Ink | 3.5 | 320×234 |
| T-51963GD035J-MLW-AJN | Kyocera | 3.5 | 240×320 |
| TD035STED4 | TPO | 3.5 | 240×320 |
| ACX435AKN-7 | SONY | 4.5 | 800×1280 |
| BTL507212-W746L | BOE | 5.0 | 720×1280 |
| H345VW01 V0 | AUO | 3.5 | 480×800 |
| H446TAN01.1 | AUO | 4.5 | 720×1280 |
| LH220Q32-FD01 | LG Display | 2.2 | 320×320 |
| LH350H01-FD01-A41 | LG Display | 3.5 | 320×480 |
| LH467WX1-SD01 | LG Display | 4.7 | 768×1280 |
| LH480HX1-SD01 | LG Display | 4.8 | 480×1024 |
| LQ043T1LX01A | SHARP | 4.3 | 540×960 |
| LQ050T1SX05(G) | SHARP | 5.0 | 1080×1920 |
