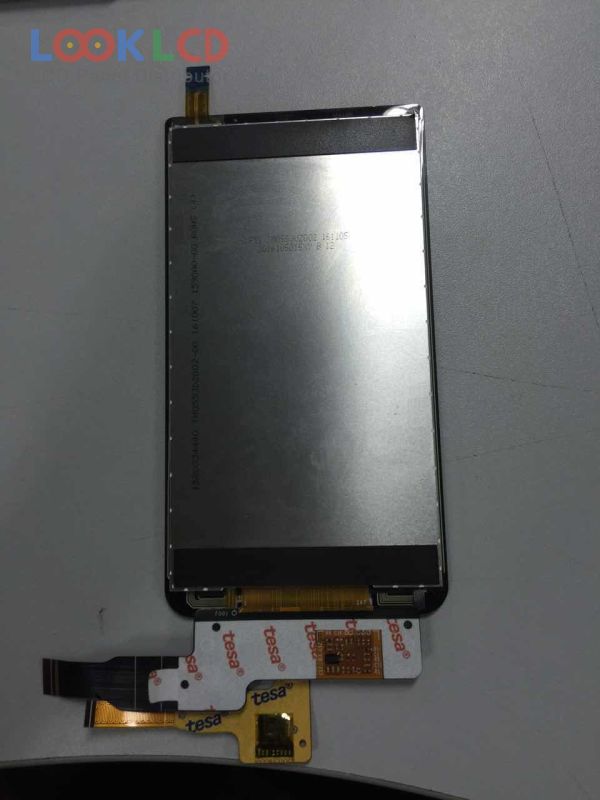

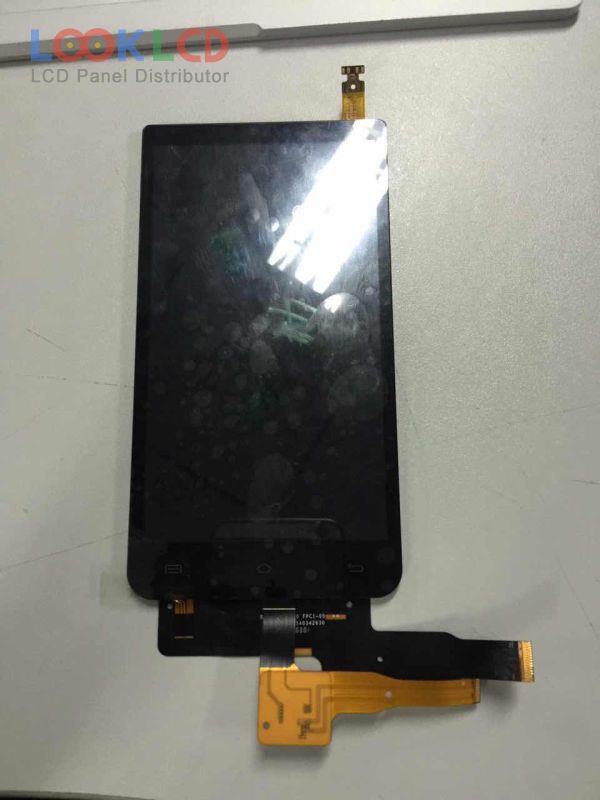

| Artikelnummer | TM055JVZG02 |
| Marke | Tianma |
| Größe | 5.5 |
| Anwendung | MPH |
| Auflösung | 720×1280 |
| Komposition | Assembly |
| Helligkeit | 350 |
| CR | 1000:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | TIANMA |
| Panel-Modell | TM055JVZG02 |
| Plattentyp | a-Si TFT-LCD , Assembly |
| Panelgröße | 5.5 inch |
| Auflösung | 720(RGB)×1280 , XGA |
| aktiver Bereich | 68.04×120.96 mm |
| Umriss | 76×143.4×4.03 mm |
| Oberfläche | |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 1000:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193170% |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Signalschnittstelle | MIPI (4 data lanes), 31 pins |
| Eingangsspannung | 1.8/2.8V (Typ.)(IOVCC/VCI) |
| Anwendung | MPH |
| BT055FWM-N00 | BOE | 5.5 | 480×854 |
| BV055FHM-N00 | BOE | 5.5 | 1080×1920 |
| CLAF055LA41 TXX | CPT | 5.5 | 540×960 |
| E555HBM2 | EDO | 5.5 | 720×1280 |
| LH550WF2-SD03 | LG Display | 5.5 | 1080×1920 |
| NL3224BC35-20R | NLT | 5.5 | 320×240 |
| TM055JDHP71 | Tianma | 5.5 | 720×1280 |
| TM055JVZG02 | Tianma | 5.5 | 720×1280 |
| TM055XDHP10 | Tianma | 5.5 | 540×960 |
| UG-5664ASGGF01 | WiseChip | 5.5 | 256×64 |
| AMS300FW01-0 | Samsung | 3.0 | 240×400 |
| H361VL01 V4 | AUO | 3.6 | 480×800 |
| LH550WF4-SD01 | LG Display | 5.5 | 1080×1920 |
| LM18WGSBZ05 | SHARP | 1.8 | 120×160 |
| LMS245DC08 | Samsung | 2.4 | 480×360 |
| LQ043Y1DX01B | SHARP | 4.3 | 480×800 |
| LS037V7DD06R | SHARP | 3.7 | 480×640 |
| LS050T1SX01 | SHARP | 5.0 | 1080×1920 |
| TD035STEB1 | TPO | 3.5 | 240×320 |
| TM024HBZ26 | Tianma | 2.4 | 240×320 |
