| Artikelnummer | TM055XDHP10 |
| Marke | Tianma |
| Größe | 5.5 |
| Anwendung | MPH |
| Auflösung | 540×960 |
| Komposition | LCM |
| Helligkeit | 350 |
| CR | 800:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | MIPI |
| Panel-Marke | TIANMA |
| Panel-Modell | TM055XDHP10 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 5.5 inch |
| Auflösung | 540(RGB)×960 , qHD |
| Anzeigemodus | FFS, Normally Black, Transmissive |
| aktiver Bereich | 68.04×120.96 mm |
| Umriss | 72.14×130.86×1.95 mm |
| Oberfläche | Antiglare (Haze 42%) |
| Helligkeit | 350 cd/m² (Typ.) |
| Kontrastverhältnis | 800:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193170% |
| Reaktionszeit | 25 (Typ.)(Tr+Td) |
| Blickwinkel | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 80Hz |
| Lampentyp | 5S2PWLEDWithout Driver |

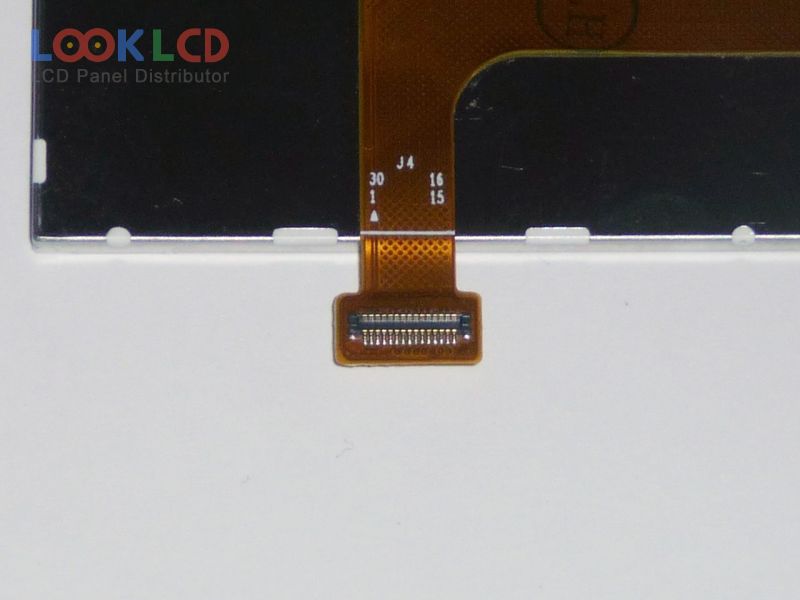

| Signalschnittstelle | MIPI (2 data lanes), 30 pins |
| Eingangsspannung | 1.8/2.8V (Typ.)(IOVCC/VCC) |
| Anwendung | MPH |
