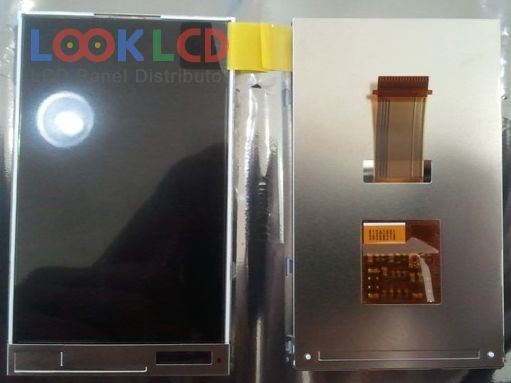

| Artikelnummer | TX08D13VM0AAA |
| Marke | KOE |
| Größe | 3.0 |
| Anwendung | MPH |
| Auflösung | 240×400 |
| Komposition | LCM |
| Helligkeit | 250 |
| CR | 300:1 |
| Farben | 65K/262K |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | CPU |
| Panel-Marke | HITACHI |
| Panel-Modell | TX08D13VM0AAA |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.0 inch |
| Auflösung | 240(RGB)×400 , WQVGA |
| Anzeigemodus | IPS, Normally Black, Transmissive |
| aktiver Bereich | 38.88×64.8 mm |
| Umriss | 45.6×76 mm |
| Oberfläche | |
| Helligkeit | 250 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 65K/262K , CIE193160% |
| Reaktionszeit | 35 (Typ.)(Tr+Td) |
| Blickwinkel | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | 1S4PWLEDWithout Driver |
| Signalschnittstelle | CPU, 35 pins |
| Eingangsspannung | 2.8/2.8V (Typ.)(VCi/IOVCC) |
| Anwendung | MPH |
