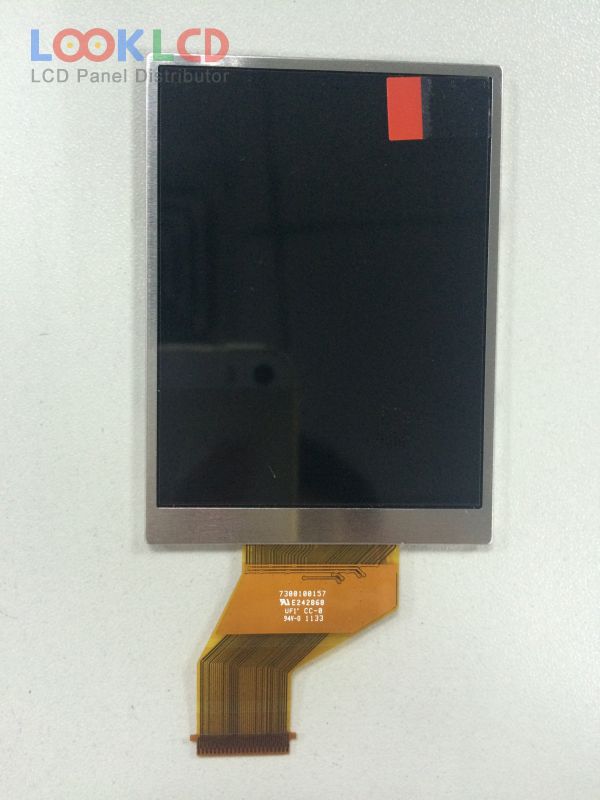

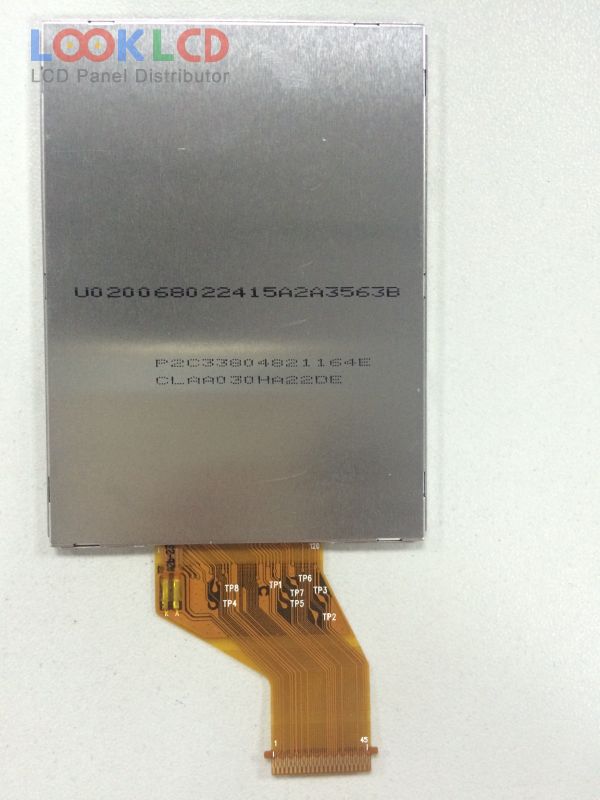

| Artikelnummer | CLAA030HA22DE |
| Marke | CPT |
| Größe | 3.0 |
| Anwendung | DSC |
| Auflösung | 960×480(dot) |
| Komposition | LCM |
| Helligkeit | |
| CR | 400:1 |
| Farben | 16.7M |
| Hintergrundbeleuchtung | WLED |
| Schnittstelle | |
| Panel-Marke | CPT |
| Panel-Modell | CLAA030HA22DE |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 3.0 inch |
| Auflösung | 960×480 |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 60×45 mm |
| Oberfläche | Glare (Haze 0%) |
| Helligkeit | |
| Kontrastverhältnis | 400:1 (Typ.) |
| Farben anzeigen | 16.7M (8-bit), CIE193160% |
| Reaktionszeit | 30 (Typ.)(Tr+Td) |
| Blickwinkel | 70/70/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| Lampentyp | WLED |
| Anwendung | DSC |
