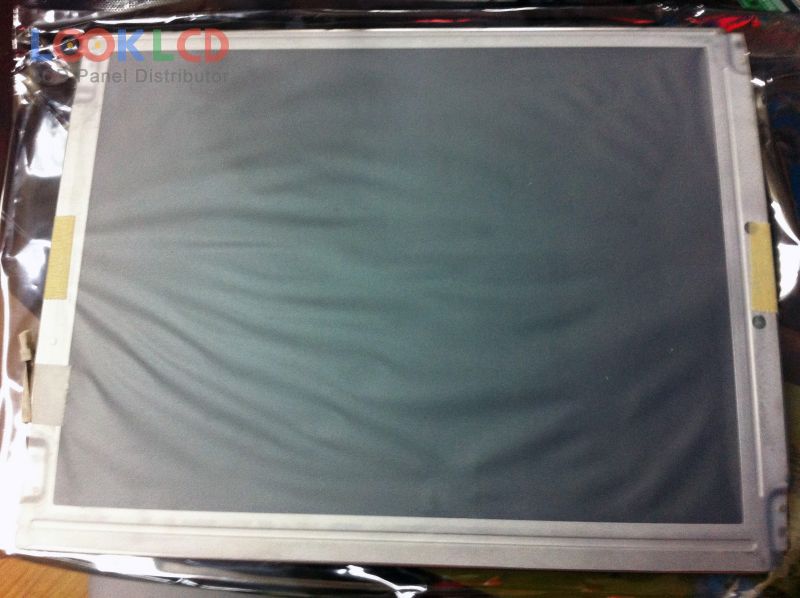

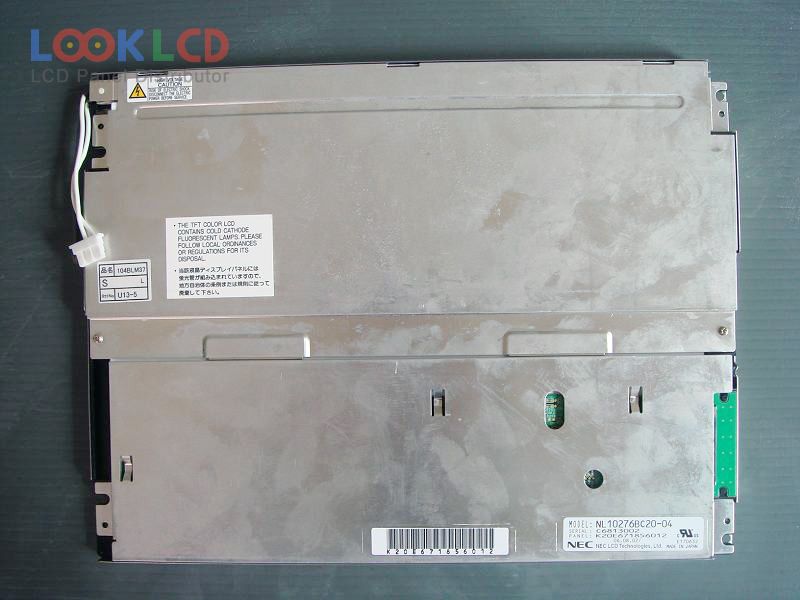

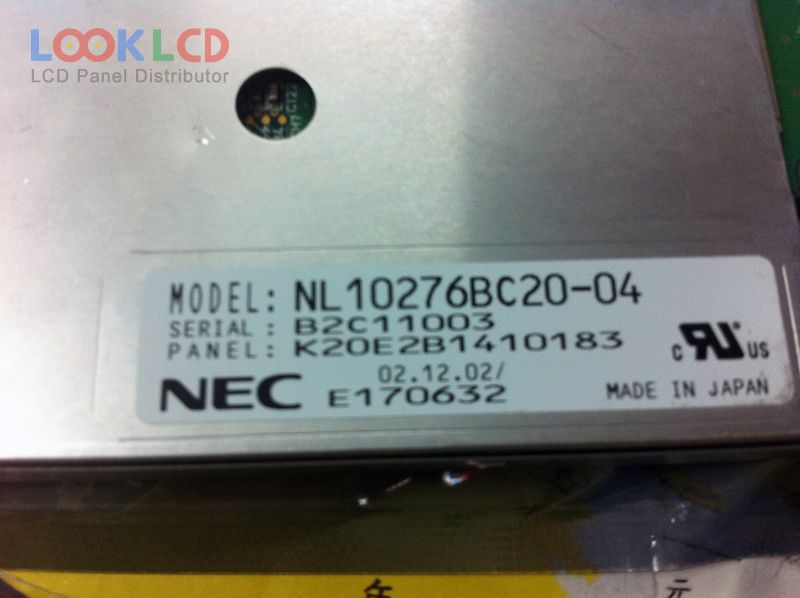

| Artikelnummer | NL10276BC20-04 |
| Marke | NLT |
| Größe | 10.4 |
| Anwendung | IA |
| Auflösung | 1024×768 |
| Komposition | LCM |
| Helligkeit | 300 |
| CR | 300:1 |
| Farben | 262K |
| Hintergrundbeleuchtung | CCFL |
| Schnittstelle | LVDS |
| Panel-Marke | NEC |
| Panel-Modell | NL10276BC20-04 |
| Plattentyp | a-Si TFT-LCD , LCM |
| Panelgröße | 10.4 inch |
| Auflösung | 1024(RGB)×768 , XGA |
| Anzeigemodus | TN, Normally White, Transmissive |
| aktiver Bereich | 210.4×157.8 mm |
| Umriss | 243×185.1×11.5 mm |
| Oberfläche | Clear, Hard coating (3H) |
| Helligkeit | 300 cd/m² (Typ.) |
| Kontrastverhältnis | 300:1 (Typ.) |
| Farben anzeigen | 262K (6-bit), CIE193140% |
| Reaktionszeit | 15/40 (Typ.)(Tr/Td) |
| Blickwinkel | 60/60/45/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequenz | 60Hz |
| Lampentyp | 2 pcsCCFLWithout Driver |
| Signalschnittstelle | LVDS (1 ch, 6-bit), 20 pins |
| Eingangsspannung | 3.3V (Typ.) |
| Anwendung | IA |
| NL10276AC28-05R | NLT | 14.1 | 1024×768 |
| NL10276AC30-04R | NLT | 15.0 | 1024×768 |
| NL10276AC30-07 | NLT | 15.0 | 1024×768 |
| NL10276AC30-42C | NLT | 15.0 | 1024×768 |
| NL10276BC20-18 | NLT | 10.4 | 1024×768 |
| NL10276BC20-18F | NLT | 10.4 | 1024×768 |
| NL10276BC24-13 | NLT | 12.1 | 1024×768 |
| NL10276BC24-21 | NLT | 12.1 | 1024×768 |
| NL10276BC30-18 | NLT | 15.0 | 1024×768 |
| NL10276BC30-24D | NLT | 15.0 | 1024×768 |
| CLAA104XA02CW | CPT | 10.4 | 1024×768 |
| DMF50081NF-SFW | Kyocera | 4.7 | 320×240 |
| EL320.240.36 HB NE | PLANAR | 5.7 | 320×240 |
| G150XTN01.1 | AUO | 15.0 | 1024×768 |
| G150XTN06.1 | AUO | 15.0 | 1024×768 |
| KCB084SV1AC-G40 | Kyocera | 8.4 | 800×600 |
| LQ064V3DG05 | SHARP | 6.4 | 640×480 |
| LQ121S1DG61 | SHARP | 12.1 | 800×600 |
| NL8060BC26-28 | NLT | 10.4 | 800×600 |
| TX26D202VM0BAA | KOE | 10.1 | 1920×1200 |
